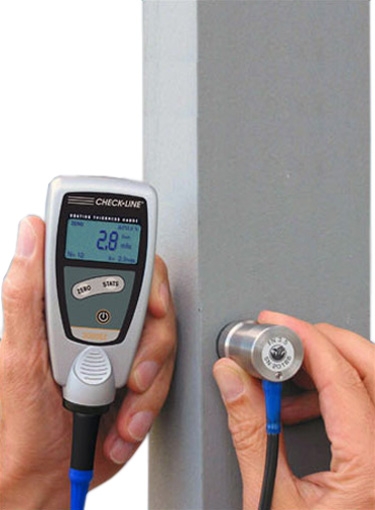

The 3000EZ-E Series Coating Thickness Gauge with Separate Probe is a precision instrument that provides fast, non-destructive, accurate coating measurements on steel and non-ferrous metals. The 3000EZ-E Series Coating Thickness Gauge is designed for testing non-magnetic coatings such as varnish, paint, enamel, chrome, copper, zinc, etc. on steel and iron (magnetic induction method) and all electrically insulating coatings, such as varnish, paint, anodizing coatings on non-ferrous metals, also on stainless steel (eddy-current method).
±0.1 mils (3µm) or 3% of reading, whichever is greater
Display
back-lit, 4-digit alphanumeric, digit height
Minimum Measuring Area
0.5" x 0.5" (13 mm x 13 mm)
Minimum Curvature Radius
concave
Calibration
factory calibration, zero calibration
Statistics Program
Number of readings, mean value, standard deviation, maximum and minimum reading of max. 99 readings
Operating Temp.
32 °F to 122 °F / 0 °C to 50 °C
Surface Temp.
5 °F to 140 °F / -15 °C to 60 °C
Storage Temp.
-4 °F to 140 °F / -20 °C to +60 °C
Power
2 AAA 1.5V
Dimensions
4.3" x 2" x 1" (110 mm x 50 mm x 25 mm)
Weight
3.2 oz (90 g)
Protection Class
IP 52 (proof against dust and dripping water)
Standards
DIN, ISO, ASTM, BS
Kit Contents
The 3000EZ-E Series Coating Thickness Gauge is supplied as a complete kit with gauge, ferrous & non-ferrous zero plate(Combination model only), plastic test shim, 2 AAA batteries, soft carrying pouch, instruction manual and calibration certificate.
±0.1 mils (3µm) or 3% of reading, whichever is greater
Display
back-lit, 4-digit alphanumeric, digit height
Minimum Measuring Area
0.5" x 0.5" (13 mm x 13 mm)
Minimum Curvature Radius
concave
Calibration
factory calibration, zero calibration
Statistics Program
Number of readings, mean value, standard deviation, maximum and minimum reading of max. 99 readings
Operating Temp.
32 °F to 122 °F / 0 °C to 50 °C
Surface Temp.
5 °F to 140 °F / -15 °C to 60 °C
Storage Temp.
-4 °F to 140 °F / -20 °C to +60 °C
Power
2 AAA 1.5V
Dimensions
4.3" x 2" x 1" (110 mm x 50 mm x 25 mm)
Weight
3.2 oz (90 g)
Protection Class
IP 52 (proof against dust and dripping water)
Standards
DIN, ISO, ASTM, BS
Kit Contents
The 3000EZ-E Series Coating Thickness Gauge is supplied as a complete kit with gauge, ferrous & non-ferrous zero plate(Combination model only), plastic test shim, 2 AAA batteries, soft carrying pouch, instruction manual and calibration certificate.
Product Features
Separate Probe
External dual sensor probe with hard metal pole tip
Includes NIST Calibration Certificate
Live Statistics Displays: Number of readings, mean, standard deviation, maximum and minimum reading of up to 99 readings
