A2108/LSR Advent Laser Tachometer with DA Output
The A2108/LSR Advent Laser Tachometer with DA Output is a precision instrument that converts RPM into an analog (voltage) output signal allowing you to use any Digital Multimeter, Data Acquisition System or Voltage Recorder as an RPM display. Optional Contact adapter allows you to measure contact RPM or surface speed.
Advent Optical/Contact Multimeter Probes The A2108 comes supplied in a custom carrying case with AAA Batteries, Instruction Manual, Calibration certificate & reflective tape.
Speed Ranges Range 1 Range 2
100 - 6000 RPM 1000 - 60,000 RPM
Resolution
+/- 1.5mV
Accuracy
+/- 0.5%
Optical Range
50 - 1000mm
Optical angle
+/- 45 deg.
Light Source
Red LED
Optical Angle
+/- 45 Degrees
Carry Case
Included
Contact Adapter
Optional
Voltage Output
-6 vdc Both Ranges
Connections
Coiled cable with 2 x 4mm plugs fitted

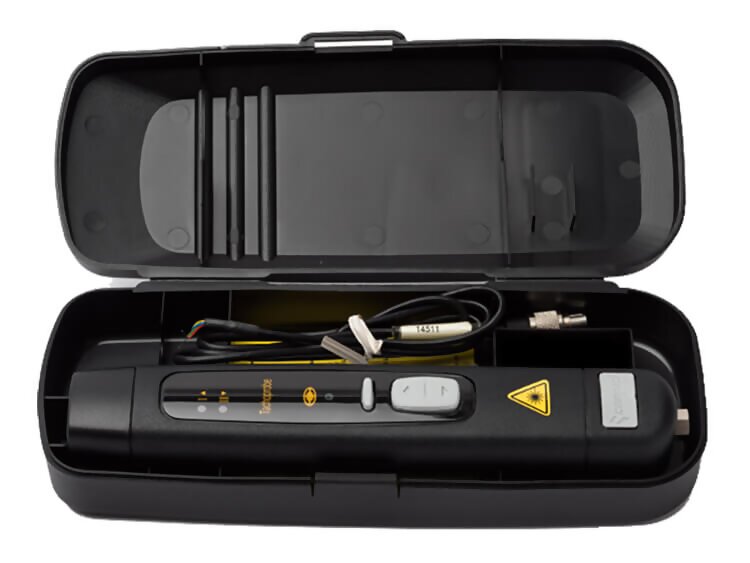

Compact A2108 Handheld Non-Contact Tachometer Reflective tape Analogue Adaptor Calibration certificate Instruction Manual Carrying Case
More Information
Product Specifications
Speed Ranges Range 1 Range 2
100 - 6000 RPM 1000 - 60,000 RPM
Resolution
+/- 1.5mV
Accuracy
+/- 0.5%
Optical Range
50 - 1000mm
Optical angle
+/- 45 deg.
Light Source
Red LED
Optical Angle
+/- 45 Degrees
Carry Case
Included
Contact Adapter
Optional
Voltage Output
-6 vdc Both Ranges
Connections
Coiled cable with 2 x 4mm plugs fitted
Product Features
Advent Optical/Contact Multimeter Probes The A2108 comes supplied in a custom carrying case with AAA Batteries, Instruction Manual, Calibration certificate & reflective tape.
