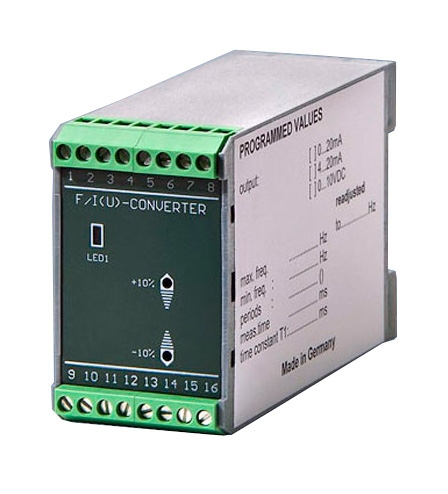

AW-Lake FAC-1-5873401 Frequency to Analog Converter
The AW-Lake FAC-1-5873401 Frequency to Analog Converter is used to convert frequency inputs from speed sensors into a linear analog signal. The output signal can be set for the typical test and control ranges of 0 – 20 mA, 4 – 20 mA or 0 – 10 V. All configuration is performed via supplied software or can be pre-configured by factory upon order.
Set-up data is easily entered via front panel keys and is not lost during power failures Analog Output Signal is user slected between 020 mA, 420 mA or 0 10V DC Powered by 18 - 32V DC 12 bit signal A-to-D resolution Measuring time and period count is User-set to optimize for each application Excellent linearity, high temperature stability and long-term stability Setup can be factory set at time of order or configured using supplied PC software DIN-Rail mount enclosure for easy installation Galvanic Isolation between power input and signal output for trouble-free operation CE and GL Certified Accepts various modules; works with a variety of sensors
Resolution
12 bit
Linearity
± 0.1%
Zero Alignment
0.01 mA (0(4) ... 20 mA)
Temperature coefficient
0.05% (10K)
Long-term Stability
0.1% (p.A.)
Power Supply
18 - 32 VDC
Operating Temperature
-20°C - +60°C
Storage Temperature
-25°C - +85°C
Housing
1.6in x 2.7in x 6.3in (WxHxD)
Protection Code
IP20
Weight
0.5 lbs
Standards
Declaration of Conformity acc. EC-Rule 89/336 EWG (CE-Sign) EMC-Immunity acc. DIN EN 50082-1
Frequency Range
0 - 18 Hz
Signal
Separated by optocoupler
Internal resistor
2.2k Ohm
Current (on)
IF = 1.0 mA Ue > 4VDC
Current (off)
IF = 0.2 mA Ue < 1VDC
Signal types
NPN-, PNP-type speed sensor, encoder or proximity switches Magnetic pic-upp sinus signal Generator sinus or rectangle signal
Output Types
0 - 20 mA (Load max 500 Ohm) / 4 - 20 ma (Load max 500 Ohm) / 0 - 10 VDC (Current max 30 mA)
Output Rate
+17 ms
More Information
Product Specifications
Resolution
12 bit
Linearity
± 0.1%
Zero Alignment
0.01 mA (0(4) ... 20 mA)
Temperature coefficient
0.05% (10K)
Long-term Stability
0.1% (p.A.)
Power Supply
18 - 32 VDC
Operating Temperature
-20°C - +60°C
Storage Temperature
-25°C - +85°C
Housing
1.6in x 2.7in x 6.3in (WxHxD)
Protection Code
IP20
Weight
0.5 lbs
Standards
Declaration of Conformity acc. EC-Rule 89/336 EWG (CE-Sign) EMC-Immunity acc. DIN EN 50082-1
Frequency Range
0 - 18 Hz
Signal
Separated by optocoupler
Internal resistor
2.2k Ohm
Current (on)
IF = 1.0 mA Ue > 4VDC
Current (off)
IF = 0.2 mA Ue < 1VDC
Signal types
NPN-, PNP-type speed sensor, encoder or proximity switches Magnetic pic-upp sinus signal Generator sinus or rectangle signal
Output Types
0 - 20 mA (Load max 500 Ohm) / 4 - 20 ma (Load max 500 Ohm) / 0 - 10 VDC (Current max 30 mA)
Output Rate
+17 ms
Product Features
Set-up data is easily entered via front panel keys and is not lost during power failures Analog Output Signal is user slected between 020 mA, 420 mA or 0 10V DC Powered by 18 - 32V DC 12 bit signal A-to-D resolution Measuring time and period count is User-set to optimize for each application Excellent linearity, high temperature stability and long-term stability Setup can be factory set at time of order or configured using supplied PC software DIN-Rail mount enclosure for easy installation Galvanic Isolation between power input and signal output for trouble-free operation CE and GL Certified Accepts various modules; works with a variety of sensors
