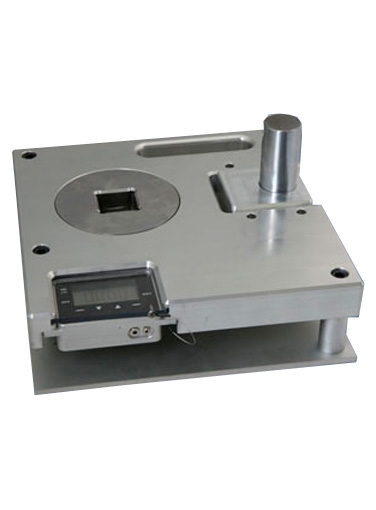

AWS 41013-HYDP 5000 Lb-Ft Torque Test Stand, 1.5" F Dr, with Display
The AWS 41013-HYDP 5000 Lb-Ft Torque Test Stand, 1.5" F Dr, with Display is designed for precision testing of high capacity hydraulic wrenches. Available with built-in or remote display. Commonly used for testing Rad, Hytorc, Cleco, TorcUP and many other hydraulic wrenches.
Heavy Duty Construction 4 Digital LCD Display Integrated reaction arm posts or slot as required RS-232 Data Output
Calibrated Range
10-100% Full Scale, bi-directional
Accuracy
±0.5% of indicated (within calibrated range)
Overload Protection
200% Full Scale bi-directional
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data
Operating Temp
32 - 120 °F (0-50 °C)
Operating Modes
Track, Peak, 1st Peak
Resolution
4 Active Digits
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memory
data storage of up to 999 readings
Data Output
RS-232
Display
62 x 62mm backlit LCD
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
More Information
Product Specifications
Calibrated Range
10-100% Full Scale, bi-directional
Accuracy
±0.5% of indicated (within calibrated range)
Overload Protection
200% Full Scale bi-directional
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data
Operating Temp
32 - 120 °F (0-50 °C)
Operating Modes
Track, Peak, 1st Peak
Resolution
4 Active Digits
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memory
data storage of up to 999 readings
Data Output
RS-232
Display
62 x 62mm backlit LCD
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
Product Features
Heavy Duty Construction 4 Digital LCD Display Integrated reaction arm posts or slot as required RS-232 Data Output
