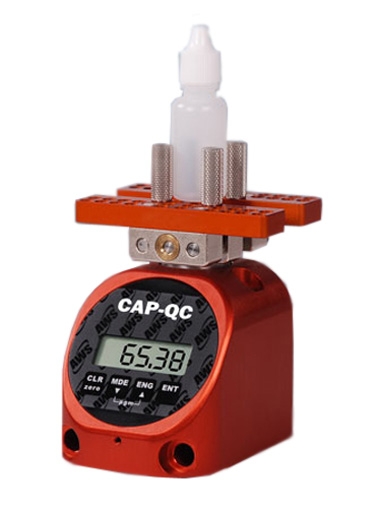

AWS CAP-QC Vial Cap Torque Tester
The AWS CAP-QC Vial Cap Torque Tester is designed for measuring open and closure torque on small diameter bottles and vials used in the pharmaceutical and cosmetic industry. This cap torque tester has a compact, light weight aluminum housing with internal rechargeable battery makes for ease of transport so the CAP-QC can be used anywhere from the lab to the production line. Intuitive menu system allows the user to quickly select measuring units and operation mode. Peak mode holds max open or close torque on the display until it is reset for the next test.
Bidirectional accuracy of 1% of indicated reading Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm 3 modes of operation: Track, Peak and 1st Peak Rugged Aluminum construction NiMH rechargeable batteries provide 8-10 hours of continuous use. Supplied with AC-Adapter/Charger Lightweight, sturdy cap grip features multiple threaded holes with four (4) screw-in posts to accommodate a wide variety of containers types Includes NIST-Traceable Calibration Certificate
Calibrated Range
10-100% Full Scale, bi-directional
Accuracy
±1% of indicated (within calibrated range)
Resolution
4 Active Digits
Overload Protection
200% Full Scale bi-directional
Operating Modes
Track, Peak
Memory
data storage of up to 999 readings
Data Output
RS-232, Single Value, no continuous output
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
Power
Internal NiMH battery, 9V Charger (included)
Weight
3lbs
Operating Temp
32 - 120 °F (0-50 °C)
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data
More Information
Product Specifications
Calibrated Range
10-100% Full Scale, bi-directional
Accuracy
±1% of indicated (within calibrated range)
Resolution
4 Active Digits
Overload Protection
200% Full Scale bi-directional
Operating Modes
Track, Peak
Memory
data storage of up to 999 readings
Data Output
RS-232, Single Value, no continuous output
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
Power
Internal NiMH battery, 9V Charger (included)
Weight
3lbs
Operating Temp
32 - 120 °F (0-50 °C)
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data
Product Features
Bidirectional accuracy of 1% of indicated reading Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm 3 modes of operation: Track, Peak and 1st Peak Rugged Aluminum construction NiMH rechargeable batteries provide 8-10 hours of continuous use. Supplied with AC-Adapter/Charger Lightweight, sturdy cap grip features multiple threaded holes with four (4) screw-in posts to accommodate a wide variety of containers types Includes NIST-Traceable Calibration Certificate
