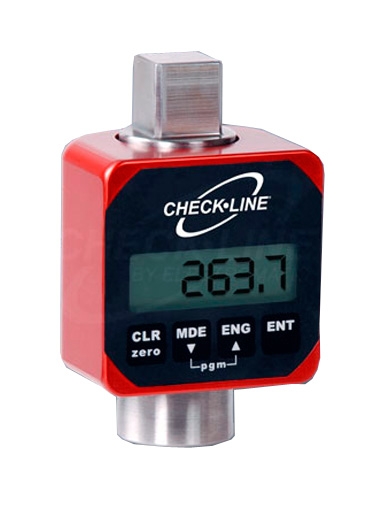

AWS ILTT Inline Digital Torque Tester
The AWS ILTT Inline Digital Torque Tester is used to convert any non-impacting torque tool into a complete torque measuring & analyzing system, simply connect the tester to the square drive, attach a socket and measure clockwise or counter-clockwise torque. Suitable for use with any hand tool or non-impacting power tool including torque wrenches, breaker bars, nut-runners and more. Internal NiMH rechargeable batteries provide 8-10 hours continuous use. The AWS ILTT takes just seconds to change test parameters, and works in either one button or automatic modes of operation. Reliability and ease of use are enhanced with features such as: Sign Lock, Peak Blanking and Auto Clear.
Not for use with Impact Tools Bidirectional accuracy of 1% of indicated reading Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm 3 modes of operation: Track, Peak and 1st Peak Rugged Aluminum Housing NiMH rechargeable batteries provide 8-10 hours continuous use Includes NIST-Traceable Calibration Certificate Adjustable "auto-clear" for hands-free operation. RS-232 Serial Output included for downloading data to PC's
Calibrated Range
10-100% Full Scale, bi-directional
Accuracy
±1% of indicated (within calibrated range)
Resolution
4 Active Digits
Overload Protection
200% Full Scale bi-directional
Operating Modes
Track, Peak, 1st Peak
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memory
data storage of up to 999 readings
Data Output
RS-232
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
Power
Internal NiMH battery, 9V Charger (included)
Weight
Aproximately 3lbs depending on transducer
Operating Temp
32 - 120 °F (0-50 °C)
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data
More Information
Product Specifications
Calibrated Range
10-100% Full Scale, bi-directional
Accuracy
±1% of indicated (within calibrated range)
Resolution
4 Active Digits
Overload Protection
200% Full Scale bi-directional
Operating Modes
Track, Peak, 1st Peak
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memory
data storage of up to 999 readings
Data Output
RS-232
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
Power
Internal NiMH battery, 9V Charger (included)
Weight
Aproximately 3lbs depending on transducer
Operating Temp
32 - 120 °F (0-50 °C)
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data
Product Features
Not for use with Impact Tools Bidirectional accuracy of 1% of indicated reading Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm 3 modes of operation: Track, Peak and 1st Peak Rugged Aluminum Housing NiMH rechargeable batteries provide 8-10 hours continuous use Includes NIST-Traceable Calibration Certificate Adjustable "auto-clear" for hands-free operation. RS-232 Serial Output included for downloading data to PC's
