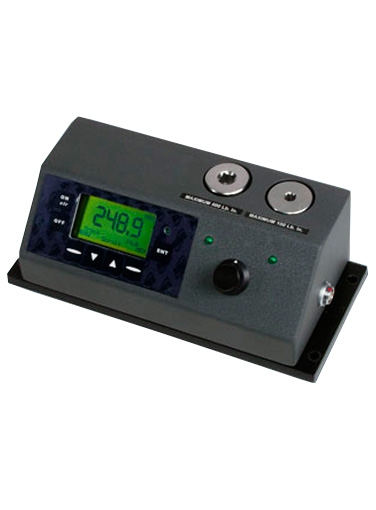

AWS MTM Multi-Channel Digital Torque Tester
The AWS MTM Multi-Channel Digital Torque Tester is designed to provide an economical way to measure and calibrate multiple torque tools. The AWS MTMDP models include an integrated display for a fully integrated tester. Historically, transducers had to be purchased individually and connected to a display via a switch box or a group of cables. With the MTM series, up to 4 transducers can integrated in one compact housing. The small footprint also allows for a clean, well-organized work space. This helps eliminate the endless searching for cables, adapters, and other accessories that may be needed. Features such as independent CW and CCW calibration, multi-point linearization, metrology grade transducer shafts, and overload protection to 200% of full scale are standard. All of the above translate to a better product for you at an unbeatable price.
Programmable high/low setpoints Selectable units of: ft-lb, in-lb, in-oz, Kgf-m, Kgf-cm, gf-cm, cN-m, N-m Small footprint of the MTM allows for a clean, well-organized work space 200% Overload protection LED Indicator Shows Active Transducer External transducers can be connected with cable input Includes NIST Traceable calibration certificate with data for each transducer Replaceable shaft design. If one shaft is damaged, replace that shaft, not the entire unit.
Calibrated Range
10-100% Full Scale, bi-directional (Standard)
Extended Range
5-100% Full Scale, bi-directional (ER Option)
Accuracy
±0.5% of indicated (within calibrated range)
Resolution
4 Active Digits
Overload Protection
200% Full Scale bi-directional
Operating Modes
Track, Peak, 1st Peak
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memory
data storage of up to 999 readings
Data Output
RS-232
Display
62 x 62mm backlit LCD
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
Power
NiMH rechargeable batteries provide 8-10 hours continuous use
Weight
6-12 lbs, depends on number of transducers and configuration
Operating Temp
32 - 120 °F (0-50 °C)
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data for each transducer
Standard Accesories
Joint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
Optional Accessories
Joint Simulators for 1/2", 3/4" & 1" Transducers, Extended Ranger "ER" Option
AWS MTM Multi-Channel Digital Torque Tester AC adapter/Charger NIST Traceable calibration certificate with data Operating Manual * Rundown Adaptor (Joint Simulator) Included with 1/4" & 3/8" drive size models
More Information
Product Specifications
Calibrated Range
10-100% Full Scale, bi-directional (Standard)
Extended Range
5-100% Full Scale, bi-directional (ER Option)
Accuracy
±0.5% of indicated (within calibrated range)
Resolution
4 Active Digits
Overload Protection
200% Full Scale bi-directional
Operating Modes
Track, Peak, 1st Peak
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memory
data storage of up to 999 readings
Data Output
RS-232
Display
62 x 62mm backlit LCD
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
Power
NiMH rechargeable batteries provide 8-10 hours continuous use
Weight
6-12 lbs, depends on number of transducers and configuration
Operating Temp
32 - 120 °F (0-50 °C)
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data for each transducer
Standard Accesories
Joint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
Optional Accessories
Joint Simulators for 1/2", 3/4" & 1" Transducers, Extended Ranger "ER" Option
Product Features
Programmable high/low setpoints Selectable units of: ft-lb, in-lb, in-oz, Kgf-m, Kgf-cm, gf-cm, cN-m, N-m Small footprint of the MTM allows for a clean, well-organized work space 200% Overload protection LED Indicator Shows Active Transducer External transducers can be connected with cable input Includes NIST Traceable calibration certificate with data for each transducer Replaceable shaft design. If one shaft is damaged, replace that shaft, not the entire unit.
