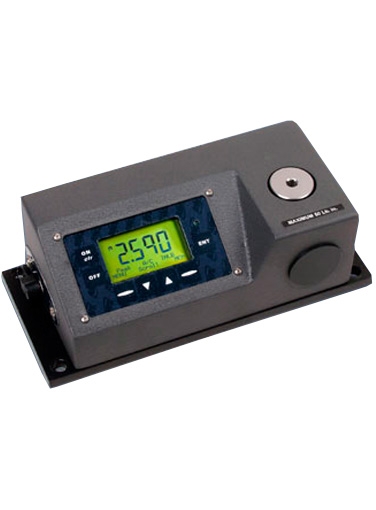

AWS TT-3000 / AWS-3000 Desktop Torque Tester
The AWS TT-3000 / AWS-3000 Desktop Torque Tester is designed specifically for the needs of today production facilities. The AWS-3000 powerful and versatile systems accommodate most testing requirements at an outstanding cost benefit. perfect for testing click, dial, and digital wrenches, plus most power tools including impulse, DC electric and pneumatic. Storage memory allows 999 data points to be saved to the unit for review, or transmitted to a local printer or PC via the standard RS232 interface. The unique keylock feature enables tamper-proof operation. High and low limits are easily set, and a panel mounted LED provides visual notification to the user when torque reaches these limits. Systems include dedicated internal transducers in vertical or horizontal configurations, and rundown fixtures for power/pulse tool testing.
Bidirectional accuracy of 0.5% of indicated reading Eight selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm 3 modes of operation: Track, Peak, and 1st Peak NiMH rechargeable batteries provide 8-10 hours continuous use Joint Simulator supplied with all 1/4", & 3/8" drives, optionally available on 1/2", 3/4" & 1" drives. RS-232 Output Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz For testing click, dial, and digital wrenches, plus most power tools including impulse, DC electric and pneumatic. Includes NIST Calibration Certificate with Data
Calibrated Range
10-100% Full Scale, bi-directional (Standard)
Extended Range
5-100% Full Scale, bi-directional (ER Option)
Accuracy
±0.5% of indicated (within calibrated range)
Resolution
4 Active Digits
Overload Protection
200% Full Scale bi-directional
Operating Modes
Track, Peak, 1st Peak
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memory
data storage of up to 999 readings
Data Output
RS-232
Display
62 x 62mm backlit LCD
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
Power
NiMH rechargeable batteries provide 8-10 hours continuous use
Weight
6-9 lbs, depends on number of transducer
Operating Temp
32 - 120 °F (0-50 °C)
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data
Standard Accesories
Joint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
Optional Accessories
Joint Simulators for 1/2", 3/4" & 1" Transducers, Extended Ranger "ER" Option
AWS TT-3000 / AWS-3000 Desktop Torque Tester AC adapter/Charger NIST Traceable calibration certificate with data Operating Manual * Rundown Adaptor (Joint Simulator) Included with 1/4" & 3/8" drive size models
More Information
Product Specifications
Calibrated Range
10-100% Full Scale, bi-directional (Standard)
Extended Range
5-100% Full Scale, bi-directional (ER Option)
Accuracy
±0.5% of indicated (within calibrated range)
Resolution
4 Active Digits
Overload Protection
200% Full Scale bi-directional
Operating Modes
Track, Peak, 1st Peak
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memory
data storage of up to 999 readings
Data Output
RS-232
Display
62 x 62mm backlit LCD
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
Power
NiMH rechargeable batteries provide 8-10 hours continuous use
Weight
6-9 lbs, depends on number of transducer
Operating Temp
32 - 120 °F (0-50 °C)
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data
Standard Accesories
Joint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
Optional Accessories
Joint Simulators for 1/2", 3/4" & 1" Transducers, Extended Ranger "ER" Option
Product Features
Bidirectional accuracy of 0.5% of indicated reading Eight selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm 3 modes of operation: Track, Peak, and 1st Peak NiMH rechargeable batteries provide 8-10 hours continuous use Joint Simulator supplied with all 1/4", & 3/8" drives, optionally available on 1/2", 3/4" & 1" drives. RS-232 Output Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz For testing click, dial, and digital wrenches, plus most power tools including impulse, DC electric and pneumatic. Includes NIST Calibration Certificate with Data
