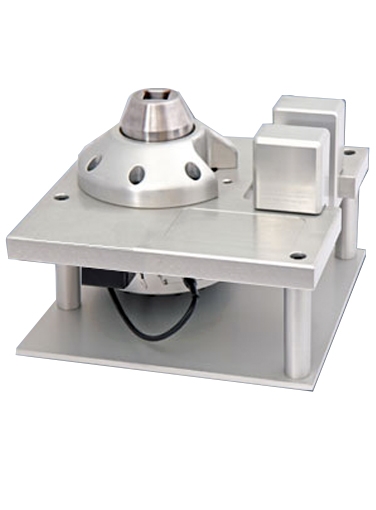

AWS TT-HYRD Torque Tester for Multipliers, Rotating and Geared Torque Wrenches
The AWS TT-HYRD Torque Tester for Multipliers, Rotating and Geared Torque Wrenches is designed for precision testing of pneumatic impact tools and geared wrenches. Commonly used for testing Ingersoll Rand, DeWalt, Milwaukee, Westward and many others makes.
Heavy Duty Construction Integrated reaction arm posts or slot as required
Calibrated Range
10-100% Full Scale, bi-directional
Accuracy
±0.5% of indicated (within calibrated range)
Overload Protection
200% Full Scale bi-directional
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data
Operating Temp
32 - 120 °F (0-50 °C)
Operating Modes
Track, Peak, 1st Peak
Resolution
4 Active Digits
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memory
data storage of up to 999 readings
Data Output
RS-232
Display
62 x 62mm backlit LCD
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
More Information
Product Specifications
Calibrated Range
10-100% Full Scale, bi-directional
Accuracy
±0.5% of indicated (within calibrated range)
Overload Protection
200% Full Scale bi-directional
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data
Operating Temp
32 - 120 °F (0-50 °C)
Operating Modes
Track, Peak, 1st Peak
Resolution
4 Active Digits
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memory
data storage of up to 999 readings
Data Output
RS-232
Display
62 x 62mm backlit LCD
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
Product Features
Heavy Duty Construction Integrated reaction arm posts or slot as required
Downloads
comming soon
