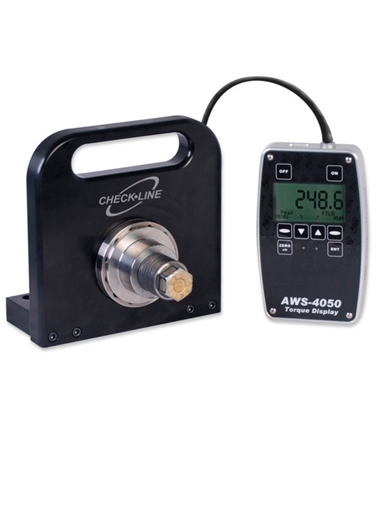

AWS TT-IMP Impact Wrench Torque Tester
The AWS TT-IMP Impact Wrench Torque Tester is specially designed with extra-rugged construction for the demanding job of testing impact tools. The flange-mounted transducer is fixed in a heavy-duty frame designed for secure bench top mounting. A digital display is connected remotely to isolate the electronics from the damaging vibrations caused by impact tools. A specially designed spline drive run-down-fixture simulates real-world application conditions, allowing the impact tool motor to ramp-up to freely rotate several times before building resistance to rotation.
Counts Pulses / Blows while displaying peak torque Heavy Duty Construction Solid machined aluminum plate for weight reduction and long term durability Spline engagement of rundown into torque transducer improves durability of transducer Test stand is designed with feet to accomodate bolting test stand to bench Supplied as a complete system with bench-mount transducer, run-down-fixture, display and connecting cable
Calibrated Range
10-100% Full Scale, bi-directional (with optional reverse threaded run-down-fixture).
Accuracy
±1.0% of indicated (within calibrated range)
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data
Operating Temp
32 - 120 °F (0-50 °C)
Power
Rechargable NiMH batteries provide 10 -12 hours of continuous use
Weight
10-20lbs depending on range
Specifications below for Display
Specifications below for Display
Operating Modes
Peak, 1st Peak, Track
Resolution
4 Active Digits
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memory
data storage of up to 999 readings
Data Output
RS-232
Display
62 x 62mm backlit LCD
Alarm Limits
LED for Visual Alarm Limits
More Information
Product Specifications
Calibrated Range
10-100% Full Scale, bi-directional (with optional reverse threaded run-down-fixture).
Accuracy
±1.0% of indicated (within calibrated range)
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data
Operating Temp
32 - 120 °F (0-50 °C)
Power
Rechargable NiMH batteries provide 10 -12 hours of continuous use
Weight
10-20lbs depending on range
Specifications below for Display
Specifications below for Display
Operating Modes
Peak, 1st Peak, Track
Resolution
4 Active Digits
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memory
data storage of up to 999 readings
Data Output
RS-232
Display
62 x 62mm backlit LCD
Alarm Limits
LED for Visual Alarm Limits
Product Features
Counts Pulses / Blows while displaying peak torque Heavy Duty Construction Solid machined aluminum plate for weight reduction and long term durability Spline engagement of rundown into torque transducer improves durability of transducer Test stand is designed with feet to accomodate bolting test stand to bench Supplied as a complete system with bench-mount transducer, run-down-fixture, display and connecting cable
