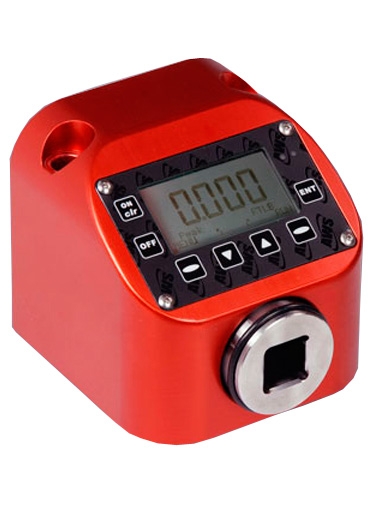

AWS TT-QCMI-50 Torque Wrench Tester, 5 - 50 Lb. In, 1/4" Sq. Drive
The AWS TT-QCMI-50 Torque Wrench Tester, 5 - 50 Lb. In, 1/4" Sq. Drive is designed for verification and calibration of a wide range of torque wrenches and torque tools. It's bench top design is perfect for testing click, dial, and digital wrenches, plus most power tools including impulse, DC electric and pneumatic.Flexible design for various torque wrench lengths and brand. A large LCD display with easy to navigate menu allows for quick setup. Storage memory allows 999 data points to be saved to the unit for review, or transmitted to a local printer or PC via the standard RS232 interface. High and low limits are easily set, and a panel mounted LED provides visual notification to the user when torque reaches these limits. Systems include dedicated internal transducers in vertical or horizontal configurations, it can be switched by the operator after purchase.
Calibrates and verifies torque wrenches up 250 lb-ft / 340 Nm Bidirectional accuracy of 0.5% of indicated reading Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm Transducer can be mounted in a vertical or horizontal orientation and switched by the user at a later time if needed NiMH rechargeable batteries provide 8-10 hours continuous use 3 modes of operation: Track, Peak and 1st Peak Includes NIST-Traceable Calibration Certificate
Calibrated Range
10-100% Full Scale, bi-directional
Accuracy
±0.5% of indicated (within calibrated range)
Resolution
4 Active Digits
Overload Protection
200% Full Scale bi-directional
Operating Modes
Track, Peak, 1st Peak
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Data Output
RS-232
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
Power
Internal NiMH battery, AC Adapter / Charger (included)
Weight
Aproximately 3lbs depending on transducer
Operating Temp
32 - 120 °F (0-50 °C)
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data
Standard Accesories
Joint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
Optional Accessories
Joint Simulators for 1/2", 3/4" & 1" Transducers

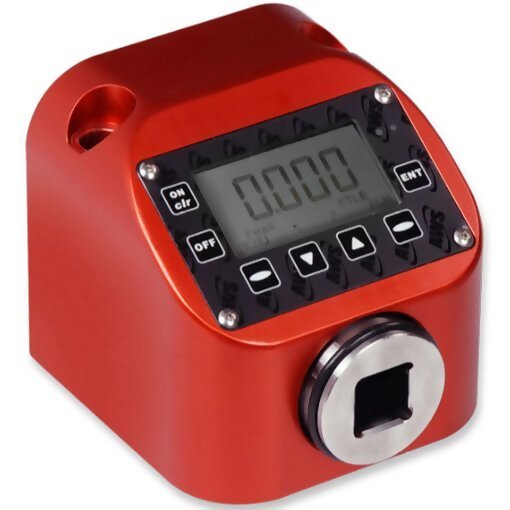

AWS TT-QCM / AWS-QCM / Aimco Auditor Torque Wrench Tester AC adapter/Charger NIST Traceable calibration certificate with data Operating Manual * Rundown Adaptor (Joint Simulator) Included with 1/4" & 3/8" drive size models
More Information
Product Specifications
Calibrated Range
10-100% Full Scale, bi-directional
Accuracy
±0.5% of indicated (within calibrated range)
Resolution
4 Active Digits
Overload Protection
200% Full Scale bi-directional
Operating Modes
Track, Peak, 1st Peak
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Data Output
RS-232
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
Power
Internal NiMH battery, AC Adapter / Charger (included)
Weight
Aproximately 3lbs depending on transducer
Operating Temp
32 - 120 °F (0-50 °C)
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data
Standard Accesories
Joint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
Optional Accessories
Joint Simulators for 1/2", 3/4" & 1" Transducers
Product Features
Calibrates and verifies torque wrenches up 250 lb-ft / 340 Nm Bidirectional accuracy of 0.5% of indicated reading Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm Transducer can be mounted in a vertical or horizontal orientation and switched by the user at a later time if needed NiMH rechargeable batteries provide 8-10 hours continuous use 3 modes of operation: Track, Peak and 1st Peak Includes NIST-Traceable Calibration Certificate
