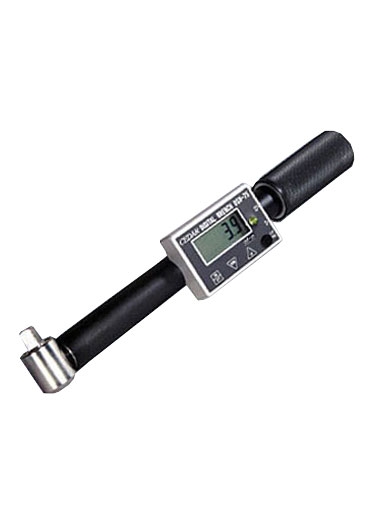

Cedar DIW Lightweight Digital Torque Tester / Wrench
The Cedar DIW Lightweight Digital Torque Tester / Wrench is a lightweight digital torque wrench that tightens or loosens bolts up to 1040 lbf-in. The wrench head swivels 300 and can be used in tight places. You will get consistent readings no matter where or how the wrench is gripped because the torque sensor is centered on the drive and not up in the handle. Torque controlled wrenches can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed. The Cedar DIW Digital Torque Wrench is rugged enough to be used in production.
Includes NIST calibration Certificate Wrench head swivels 300 Available in lbf-in, lbf-ft, Kgf-cm and N-m (selectable) Peak, Real Time and Peak Down measuring mode (selectable) 400 data memory for recall or for SPC download Programmable High and Low setpoints with both audible beep and Green/ Red LED indicator for uniform torque tightening or GO/NO GO testing Both CW and CCW operation RS-232 output for SPC capability (peak data only) CW stepless one-way clutch adapter, AC charger and carrying case included. Runs on internal NiCad batteries (8 hour use) DIW is sold as a kit including carrying case and AC adapter/charger Ergonomic, light weight, rugged metal construction ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
Accuracy
±0.5%, ±1 LSD
Sampling Frequency
100 Hz (100 samples/sec)
Display Update Rate
5 Hz (5 times/sec)
RS232 Throughput
80 Hz, max (80 sample/sec,max)
Memory
400 data memory for recall or for SPC download
Warranty
2 years

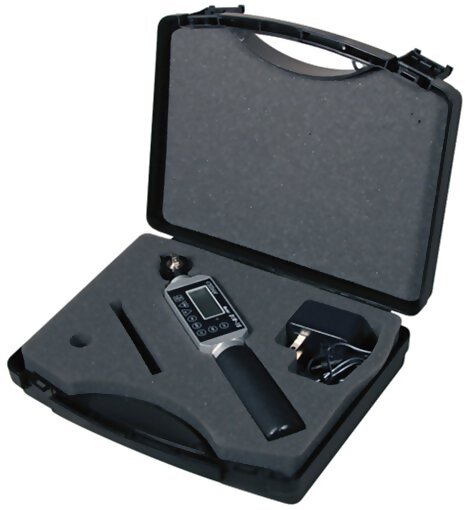

Imada Cedar DIW Lightweight Digital Torque Tester AC adapter/Charger Carrying Case
More Information
Product Specifications
Accuracy
±0.5%, ±1 LSD
Sampling Frequency
100 Hz (100 samples/sec)
Display Update Rate
5 Hz (5 times/sec)
RS232 Throughput
80 Hz, max (80 sample/sec,max)
Memory
400 data memory for recall or for SPC download
Warranty
2 years
Product Features
Includes NIST calibration Certificate Wrench head swivels 300 Available in lbf-in, lbf-ft, Kgf-cm and N-m (selectable) Peak, Real Time and Peak Down measuring mode (selectable) 400 data memory for recall or for SPC download Programmable High and Low setpoints with both audible beep and Green/ Red LED indicator for uniform torque tightening or GO/NO GO testing Both CW and CCW operation RS-232 output for SPC capability (peak data only) CW stepless one-way clutch adapter, AC charger and carrying case included. Runs on internal NiCad batteries (8 hour use) DIW is sold as a kit including carrying case and AC adapter/charger Ergonomic, light weight, rugged metal construction ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
