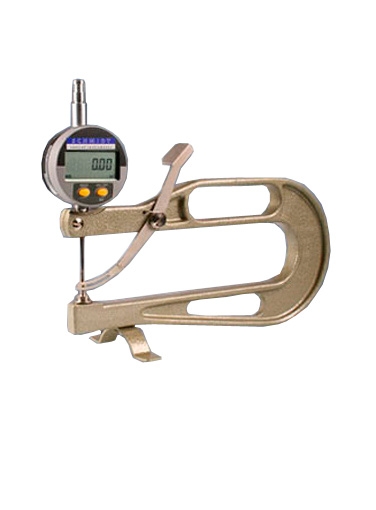

Checkline 200-JD-25-E Digital Thickness Gauge, Range 0-1", Depth of Jaws 200 mm, Feeler E for Sheet Metal
The Checkline 200-JD-25-E Digital Thickness Gauge, Range 0-1", Depth of Jaws 200 mm, Feeler E for Sheet Metal is a precision instrument that has the benefit of an easy to read LCD display, combined with the highest accuracy. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.. The user can select either to display thickness in mm or in inches.
Operating by lifting device - self closing Resolution 0.01 mm (0.001 inch) Includes swing-out foot for on-table operation Dial gauge model: Sylvac S229 User selectable units mm and inch RS 232 output for datacollection Easy to read LCD Display
Resolution
0.01 mm / 0.001 inch
Measuring range
0 - 25 mm / 1 inch
Depth of jaws
200 mm
Display
LCD 6 digit, 8.5 mm high
Measuring principle
Capacitive (Sylvac)
Measuring pressure
< 1.4 N
Feeler shape
a,b,c,d or e
Lifting device
Operating by lifting device - self closing
Data output
RS 232, optical coupling
Power supply
Battery, 3 V Lithium, CR 2032
Temperature range
10-45°C
Weight, net
700 g
200-JD-25 Digital Thickness Gauge Packing Case
More Information
Product Specifications
Resolution
0.01 mm / 0.001 inch
Measuring range
0 - 25 mm / 1 inch
Depth of jaws
200 mm
Display
LCD 6 digit, 8.5 mm high
Measuring principle
Capacitive (Sylvac)
Measuring pressure
< 1.4 N
Feeler shape
a,b,c,d or e
Lifting device
Operating by lifting device - self closing
Data output
RS 232, optical coupling
Power supply
Battery, 3 V Lithium, CR 2032
Temperature range
10-45°C
Weight, net
700 g
Product Features
Operating by lifting device - self closing Resolution 0.01 mm (0.001 inch) Includes swing-out foot for on-table operation Dial gauge model: Sylvac S229 User selectable units mm and inch RS 232 output for datacollection Easy to read LCD Display
