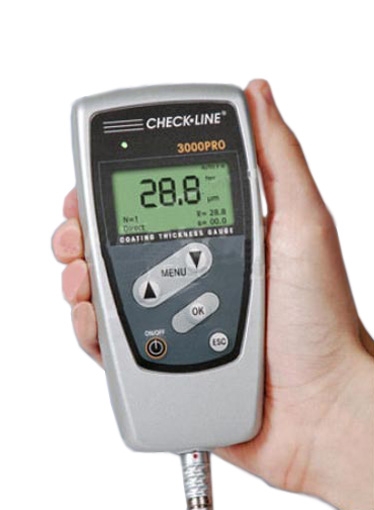

Checkline 3000PRO Coating Thickness Gauge
The Checkline 3000PRO Coating Thickness Gauge is a multifunctional fully menu driven gauge for fast, professional and precise coating thickness measurement. Automatic identification of the substrate. Highly wear-resistant measuring poles made of carbide metal.
Automatic identification of the substrate Calibration-free measurements (calibration only in exceptional cases) Mobile and stationary operation with only one gauge Highly wear-resistant measuring poles made of carbide metal The 3000PRO Coating Thickness Gauge features special probes for unusual measurement tasks Precise measurements on different geometries thanks to simple calibration methods Safe use even for special applications such as sand-blasted surfaces, small parts and curved surfaces Scan mode for the quick recognition of coating thickness variations on large surfaces, including display of minimum and maximum readings Display backlight for bad ambient lighting conditions Online statistics with all statistical parameters Easy to operate, well-known from mobile phones Intuitive menu guidance via dialog with the user Free choice of language German, English, French Extensive data memory for the management of different measurement series Alphanumerical file names can be individually stored for every measurement task Infrared interface for wireless data transfer to printer and PC No additional data transfer software required thanks to the use of Windows standard application (HyperTerminal) Optional high temperature footer for measuring on surfaces up to 150 C/302 F The 3000PRO Coating Thickness Gauge includes NIST Calibration Certificate 1 Year Warranty
Measuring principle
Magnetic induction method (F-version); Eddy current method (N-version)
Tolerance
± (0.7 µm/0.04 mils + 1% of reading)
Resolution
Refer to RESOLUTION TABLE, above
Display
4-digit display (digit height 10 mm/0.4”) and 32 alphanumerical characters; switchable backlight
Minimum measurement area
5 mm x 5mm/0.2” x 0.2”
Minimum curvature radius
convex 2mm/0.08”; concave 5mm/0.2”
Minimum substrate thickness
0.2mm/8 mils (for F-versions); 50 µm/2 mils (for N-versions)
Calibration methods
- Factory calibration
Limit values
Selectable; optical and acoustic signal if limit value is exceeded
Scan mode
For continuous measurements; for the quick recognition of coating thickness variations; with permanent display of minimum and maximum reading
Statistics
Single-value statistics
Data memory
10,000 readings in max. 500 selectable files; alphanumerical file names; stored readings and statistical values individually recallable
Interfaces
Infrared and serial RS232 interface
Language
Operator prompting and documentation in German, English, French (optional other languages)
Operating temperature
0 °C to 50 °C/32 °F to 122 °F (storage temperature - 20 °C to +60 °C/-4 °F to 140 °F)
Surface temperature
5° F - 140° F / -15° C - 60° C (standard) 5° - 302° F / 15° - 150° C (w/optional footer)
Power supply
2 x round cell (AA) 1.5 V up to 60 hours of operating time
Housing/keypad
Protection class IP52 (protection against dust and dripping water)
Dimensions
Gauge
Weight
approx. 200 g/7 oz (gauge including batteries and probe)
Standards
DIN EN ISO, ASTM, BS
Warranty
1 Year
Calibration Certificate
Included
3000PRO Coating Thickness Gauge Probe Manufacturers calibration certificate Ferrous and or non-errous zero plate(model dependant) 2 calibration foils 2 AA batteries Soft pouch Instruction manual Carrying case
More Information
Product Specifications
Measuring principle
Magnetic induction method (F-version); Eddy current method (N-version)
Tolerance
± (0.7 µm/0.04 mils + 1% of reading)
Resolution
Refer to RESOLUTION TABLE, above
Display
4-digit display (digit height 10 mm/0.4”) and 32 alphanumerical characters; switchable backlight
Minimum measurement area
5 mm x 5mm/0.2” x 0.2”
Minimum curvature radius
convex 2mm/0.08”; concave 5mm/0.2”
Minimum substrate thickness
0.2mm/8 mils (for F-versions); 50 µm/2 mils (for N-versions)
Calibration methods
- Factory calibration
Limit values
Selectable; optical and acoustic signal if limit value is exceeded
Scan mode
For continuous measurements; for the quick recognition of coating thickness variations; with permanent display of minimum and maximum reading
Statistics
Single-value statistics
Data memory
10,000 readings in max. 500 selectable files; alphanumerical file names; stored readings and statistical values individually recallable
Interfaces
Infrared and serial RS232 interface
Language
Operator prompting and documentation in German, English, French (optional other languages)
Operating temperature
0 °C to 50 °C/32 °F to 122 °F (storage temperature - 20 °C to +60 °C/-4 °F to 140 °F)
Surface temperature
5° F - 140° F / -15° C - 60° C (standard) 5° - 302° F / 15° - 150° C (w/optional footer)
Power supply
2 x round cell (AA) 1.5 V up to 60 hours of operating time
Housing/keypad
Protection class IP52 (protection against dust and dripping water)
Dimensions
Gauge
Weight
approx. 200 g/7 oz (gauge including batteries and probe)
Standards
DIN EN ISO, ASTM, BS
Warranty
1 Year
Calibration Certificate
Included
Product Features
Automatic identification of the substrate Calibration-free measurements (calibration only in exceptional cases) Mobile and stationary operation with only one gauge Highly wear-resistant measuring poles made of carbide metal The 3000PRO Coating Thickness Gauge features special probes for unusual measurement tasks Precise measurements on different geometries thanks to simple calibration methods Safe use even for special applications such as sand-blasted surfaces, small parts and curved surfaces Scan mode for the quick recognition of coating thickness variations on large surfaces, including display of minimum and maximum readings Display backlight for bad ambient lighting conditions Online statistics with all statistical parameters Easy to operate, well-known from mobile phones Intuitive menu guidance via dialog with the user Free choice of language German, English, French Extensive data memory for the management of different measurement series Alphanumerical file names can be individually stored for every measurement task Infrared interface for wireless data transfer to printer and PC No additional data transfer software required thanks to the use of Windows standard application (HyperTerminal) Optional high temperature footer for measuring on surfaces up to 150 C/302 F The 3000PRO Coating Thickness Gauge includes NIST Calibration Certificate 1 Year Warranty
