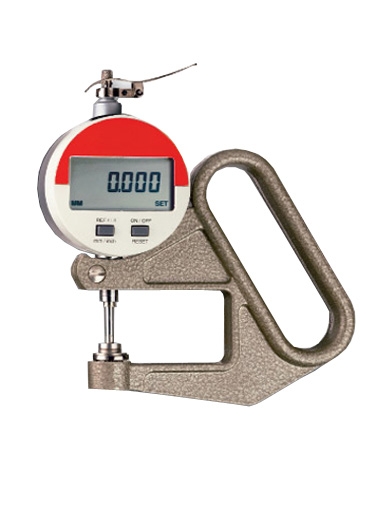

Checkline 500-FD-D Digital Thickness Gauge, Range 0-0.4", Jaw Depth 50 mm, Feeler D for Hard Leather, Plywood, Fiberboard
The Checkline 500-FD-D Digital Thickness Gauge, Range 0-0.4", Jaw Depth 50 mm, Feeler D for Hard Leather, Plywood, Fiberboard is a precision instrument that has the benefit of an easy to read LCD display, combined with the highest accuracy. The user can select either to display thickness in mm or in inches. The 500-FD model is available with 5 different feelers. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.
Operating by lifting device - self closing Resolution 0.001 mm (0.0001 inch) Easy to read LCD Display User selectable units mm and inch RS 232 output for data collection Dial gauge: Sylvac S 229
Easy to read LCD Display
0.001 mm / 0.0001 inch
Measuring range
0 - 10 mm / 0.4 inch
Depth of jaw
50 mm
Display
LCD 6 digit, 8.5 mm high
Measuring principle
Capacitive (Sylvac)
Measuring pressure
< 1.4 N
Feeler shape
a,b,c,d or e
Lifting device
Operating by lifting device - self closing
Data output
RS 232, optical coupling
Power supply
Battery 3 V Lithium, CR 2032
Temperature range
10 - 45°C
Weight, net
300 g
More Information
Product Specifications
Easy to read LCD Display
0.001 mm / 0.0001 inch
Measuring range
0 - 10 mm / 0.4 inch
Depth of jaw
50 mm
Display
LCD 6 digit, 8.5 mm high
Measuring principle
Capacitive (Sylvac)
Measuring pressure
< 1.4 N
Feeler shape
a,b,c,d or e
Lifting device
Operating by lifting device - self closing
Data output
RS 232, optical coupling
Power supply
Battery 3 V Lithium, CR 2032
Temperature range
10 - 45°C
Weight, net
300 g
Product Features
Operating by lifting device - self closing Resolution 0.001 mm (0.0001 inch) Easy to read LCD Display User selectable units mm and inch RS 232 output for data collection Dial gauge: Sylvac S 229
