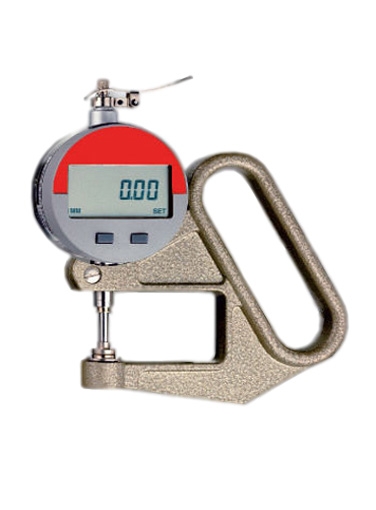

Checkline 500-JD-A Digital Thickness Gauge, Range 0-0.4", Depth of Jaw 50 mm, Feeler A for Rubber, Felt, Soft Materials, Non Wovens
The Checkline 500-JD-A Digital Thickness Gauge, Range 0-0.4", Depth of Jaw 50 mm, Feeler A for Rubber, Felt, Soft Materials, Non Wovens is available with 5 different feelers. Measurement is done by a spring force. Opening by lifting device (lever) - self closing. The 500-JD digital thickness gauge features an easy to read LCD display along with the high accuracy. The user can select to display thickness in inches or mm.
Operating by lifting device - self closing Resolution 0.001 inch(0.01 mm) Easy to read LCD Display User selectable units mm and inch RS 232 output for data collection Dial gauge model: Sylvac S 229
Resolution
0.01 mm / 0.001 inch
Measuring range
0 - 10 mm / 0.4 inch
Depth of jaw
50 mm / 2 inch
Display
LCD 6 digit, 8.5 mm high
Measuring principle
Capacitive (Sylvac)
Measuring pressure
< 1.4 N
Feeler shape
a,b,c,d or e
Lifting device
Operating by lifting device - self closing
Data output
RS 232, optical coupling
Temperature range
10 - 45°C
Weight, net
300 g
Power Supply
Battery, 3 V Lithium, CR 2032
More Information
Product Specifications
Resolution
0.01 mm / 0.001 inch
Measuring range
0 - 10 mm / 0.4 inch
Depth of jaw
50 mm / 2 inch
Display
LCD 6 digit, 8.5 mm high
Measuring principle
Capacitive (Sylvac)
Measuring pressure
< 1.4 N
Feeler shape
a,b,c,d or e
Lifting device
Operating by lifting device - self closing
Data output
RS 232, optical coupling
Temperature range
10 - 45°C
Weight, net
300 g
Power Supply
Battery, 3 V Lithium, CR 2032
Product Features
Operating by lifting device - self closing Resolution 0.001 inch(0.01 mm) Easy to read LCD Display User selectable units mm and inch RS 232 output for data collection Dial gauge model: Sylvac S 229
