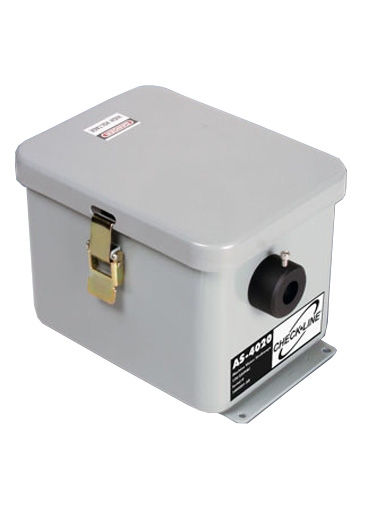

Checkline AS-40200 Machine Vision Stroboscope, Flash Rate in Hz @ 600V: 200 Max
The Checkline AS-40200 Machine Vision Stroboscope, Flash Rate in Hz @ 600V: 200 Max is designed for demanding applications that require high output, long life, and outstanding reliability. The AS4000 is rated for an output of 40 watts and is supplied in a rugged dust-proof metal enclosure.
Variable intensity control The xenon flashtube produces intense pulses, covering the ultraviolet (UV), visible (VIS) and near infrared (NIR) Industries highest light output per watt Custom versions for specific applications and OEM version available. Inquire
Spectral Bandwidth
Standard
Fiber bundle outside diameter
0.7 inch (18mm) max
Input Voltage
120/230VAC ±10%, 50/60Hz
Input Power
40 Watts
Trigger Input
+5V, 20mA, 10-100µsec pulse (into an optoisolator with internal 150 ohms nominal series resistor)
Flash Lamp Voltage
300-600 VDC, User adjustable
Delay between flash command and light output
<10 µsec (typical)
Ext. ref. voltage
1 to 6 volts DC (V0-Vref x 60)
Storage Temperature
-40 - 194° F (-40 - 90° C)
Operating Temperature
32 - 104° F (0 - 40° C)
Dimensions
7" x 9" x 6.25"
Weight
9.2 lbs (4.1 Kg)
More Information
Product Specifications
Spectral Bandwidth
Standard
Fiber bundle outside diameter
0.7 inch (18mm) max
Input Voltage
120/230VAC ±10%, 50/60Hz
Input Power
40 Watts
Trigger Input
+5V, 20mA, 10-100µsec pulse (into an optoisolator with internal 150 ohms nominal series resistor)
Flash Lamp Voltage
300-600 VDC, User adjustable
Delay between flash command and light output
<10 µsec (typical)
Ext. ref. voltage
1 to 6 volts DC (V0-Vref x 60)
Storage Temperature
-40 - 194° F (-40 - 90° C)
Operating Temperature
32 - 104° F (0 - 40° C)
Dimensions
7" x 9" x 6.25"
Weight
9.2 lbs (4.1 Kg)
Product Features
Variable intensity control The xenon flashtube produces intense pulses, covering the ultraviolet (UV), visible (VIS) and near infrared (NIR) Industries highest light output per watt Custom versions for specific applications and OEM version available. Inquire
