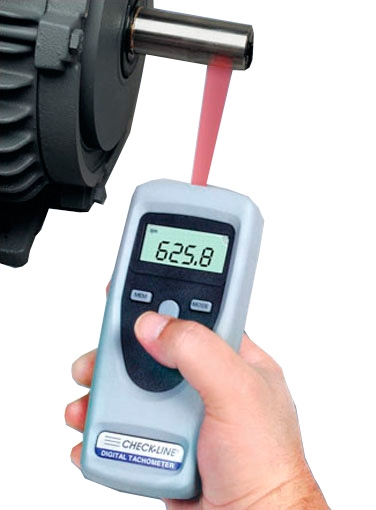

The Checkline CDT-1000HD Handheld Laser Tachometer, Non-contact, 1.00-99.999 rpm is a precision instrument that accurately measures rotational speed (RPM) using a visible beam of light. The Checkline CDT-1000HD can be up to 24 inches (60 cm) away from the small piece of reflective tape that is affixed to the rotating element. The CDT-1000HD's rugged construction, portability and outstanding features make It an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.
0.01 from 0 - 100 / 0.1 from 100 - 1,000 / 1 from 1000 - 99,999
Display
5 - Digit LCD, 10mm high
Accuracy
± 0.02% of reading or 1 digit
Decimal Point
Automatic
Memory System
Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System
Visible LED light beam
Sensing Distance
Up to 24 inches (60 cm)
Display Update Time
Ambient -20 to 120° F (-30 to 50° C) / Material
Auto Power Off
After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life
40 hours continuous use
Battery
2 AA (1.5 V) or rechargeable
Weight
6 ounces (170 grams)
Operating Temp
32 to 122° F (0 to 50° C)
Storage Temp
-4 to 150° F (-20 to 70° C)
Accessories
10 Strips of 1/2 x 4 inch reflective tape
Warranty
5 Years
Kit Contents

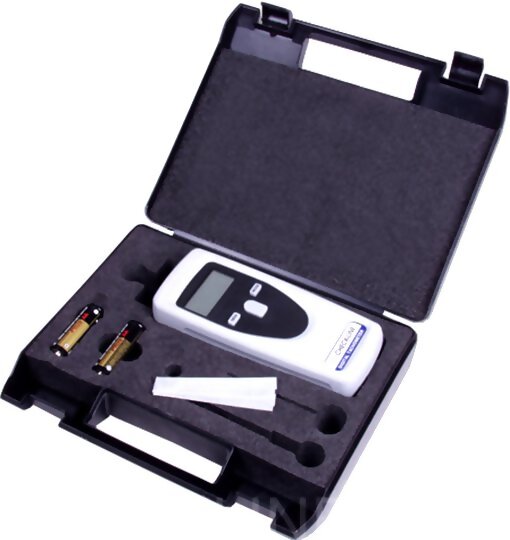

The CDT-1000HD complete kit includes the Tachometer, Reflective Tape, Two (2) AA Batteries (1.5 V), Operating Instruction Manual and NIST certificate -- all supplied in a foam-fitted, hard-plastic Carrying Case.
0.01 from 0 - 100 / 0.1 from 100 - 1,000 / 1 from 1000 - 99,999
Display
5 - Digit LCD, 10mm high
Accuracy
± 0.02% of reading or 1 digit
Decimal Point
Automatic
Memory System
Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System
Visible LED light beam
Sensing Distance
Up to 24 inches (60 cm)
Display Update Time
Ambient -20 to 120° F (-30 to 50° C) / Material
Auto Power Off
After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life
40 hours continuous use
Battery
2 AA (1.5 V) or rechargeable
Weight
6 ounces (170 grams)
Operating Temp
32 to 122° F (0 to 50° C)
Storage Temp
-4 to 150° F (-20 to 70° C)
Accessories
10 Strips of 1/2 x 4 inch reflective tape
Warranty
5 Years
Kit Contents
The CDT-1000HD complete kit includes the Tachometer, Reflective Tape, Two (2) AA Batteries (1.5 V), Operating Instruction Manual and NIST certificate -- all supplied in a foam-fitted, hard-plastic Carrying Case.
Product Features
Measures speeds from as low as 1.00 rpm up to 99,999 rpm
Accuracy of 0.02% with a resolution of 0.01 RPM
Includes NIST calibration Certificate
Built-in memory stores maximum, minimum, average and last reading for recall to the display
