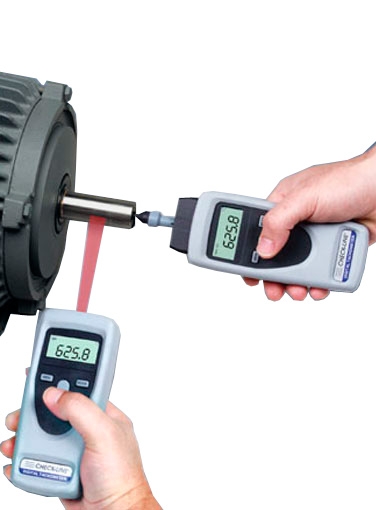

The Checkline CDT-2000HD Handheld Laser Tachometer, Non-Contact 1.00 - 99,999 rpm / Contact: 1.00 - 19,999 rpm is designed to combine the best features of both contact and non-contact models to accurately measure RPM, surface speed and length. When using the non-contact mode, rotational speed (RPM) is measured using a visible beam of light. The Checkline CDT-2000HD can be up to 24 inches away from the small piece of reflective tape that is affixed to the rotating element. In the contact operating mode, the speed is sensed by directly contacting rotating device using one of the contact adapters supplied with the instrument. The CDT-2000HD rugged construction, portability and outstanding features make It an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.
.01 from 0 - 10 / .1 from 100 - 1,000 / 1 from 1000 - 99,999
Accuracy
± 0.02% of reading or 1 digit
Display
5 - Digit LCD, 10mm high
Decimal Point
Automatic
Memory System
Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System
Non-Contact
Engineering Units
RPM
Sensing Distance
Up to 24 inches (60 cm)
Display Update Time
0.5 seconds or one measuring
Auto Power Off
After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life
40 hours continuous use
Battery
2 AA (1.5 V) or rechargeable
Weight
6 ounces (170 grams)
Housing Material
ABS Plastic housing with removable protective rubber shell
Operating Temp
32 to 122° F (0 to 50° C)
Storage Temp
-4 to 150° F (-20 to 70° C)
Accessories
Contact adapter, cone tip, universal surface speed wheel, reflective tape, operating instructions and foam-fitted, hard plastic carrying case
Optional Accessories
Shaft extension, 3.15 inches (80 mm)
Warranty
5 years
Kit Contents

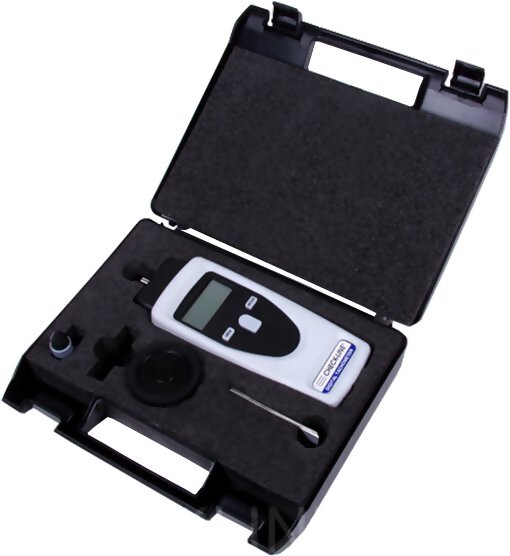

The CDT-2000HD includes the Tachometer, Slide-In Contact Adapter, 6" Universal Surface Speed Wheel, Cone Tip Adapter, Reflective Tape, Two (2) AA Batteries (1.5 V) and Operating Instruction Manual -- all supplied in a foam-fitted, hard-plastic Carrying Case.
Aplications (Contact RPM)
Used to measure the speed of rotating motors, shafts, pulleys, gears, etc
Aplications (Non-Contact RPM)
Used when contact measurement is not possible due to access space restrictions, safety concerns, etc
Aplications (Linear speed and Length)
Used to measure the linear speed or length of moving surfaces such as conveyor belts, printed materials, webs of fabric or paper, etc
.01 from 0 - 10 / .1 from 100 - 1,000 / 1 from 1000 - 99,999
Accuracy
± 0.02% of reading or 1 digit
Display
5 - Digit LCD, 10mm high
Decimal Point
Automatic
Memory System
Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System
Non-Contact
Engineering Units
RPM
Sensing Distance
Up to 24 inches (60 cm)
Display Update Time
0.5 seconds or one measuring
Auto Power Off
After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life
40 hours continuous use
Battery
2 AA (1.5 V) or rechargeable
Weight
6 ounces (170 grams)
Housing Material
ABS Plastic housing with removable protective rubber shell
Operating Temp
32 to 122° F (0 to 50° C)
Storage Temp
-4 to 150° F (-20 to 70° C)
Accessories
Contact adapter, cone tip, universal surface speed wheel, reflective tape, operating instructions and foam-fitted, hard plastic carrying case
Optional Accessories
Shaft extension, 3.15 inches (80 mm)
Warranty
5 years
Kit Contents
The CDT-2000HD includes the Tachometer, Slide-In Contact Adapter, 6" Universal Surface Speed Wheel, Cone Tip Adapter, Reflective Tape, Two (2) AA Batteries (1.5 V) and Operating Instruction Manual -- all supplied in a foam-fitted, hard-plastic Carrying Case.
Aplications (Contact RPM)
Used to measure the speed of rotating motors, shafts, pulleys, gears, etc
Aplications (Non-Contact RPM)
Used when contact measurement is not possible due to access space restrictions, safety concerns, etc
Aplications (Linear speed and Length)
Used to measure the linear speed or length of moving surfaces such as conveyor belts, printed materials, webs of fabric or paper, etc
Product Features
Measures speeds from as low as 1.00 rpm up to 99,999 rpm
Accuracy of 0.02% with a resolution of 0.01 RPM
Includes NIST calibration Certificate
Built-in memory stores maximum, minimum, average and last reading for recall to the display
