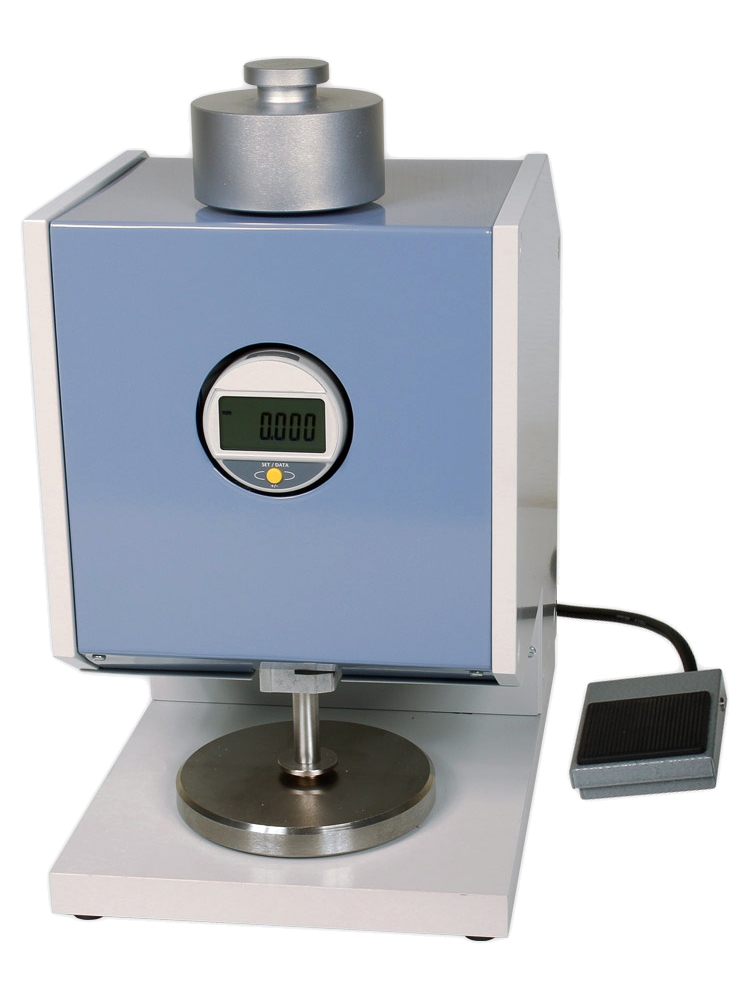

Checkline D-2005-V Material Thickness Gauge for Standard Fleece
The Checkline D-2005-V Material Thickness Gauge for Standard Fleece is the stable and rigid base frame with an encapsulated, separate measuring block. And is a top choice if you appreciate high precision (up to 0.001 mm), easy operation, automatic processing and objective, reproducible measurement results.
Rigid housing frame Separate measuring block, encased against outside external impacts, for highest accuracy and repeatability Optional: Preselection of the measuring range Optional: Adjustable dwell time Footpedal included Switch-selectable measuring units mm / inch Optional: software for data transfer and analysis - Part No. SW-50 Motor-driven calliper movement Seven-segment display Resolution 0.01 mm - standard, 0.001 mm - optional (0.001 mm is standard for D-2005-P, D-2005-F)
Measuring Range
0 - 10 mm, (25 mm optional, Code E)
Resolution
0.001 mm
Accuracy
± 0.002 mm
Depth of jaw
160 mm
Measuring system
Capazitive -> Sylvac
Display
LCD 6 digit, 8.5 mm high
Measuring unit
mm or inch
Preselection of the measuring range
Optional
Feeler shape and surface pressure
According international standards DIN, EN and ISO
Adjustable dwell time
Optional
Output signal
RS 232 for printer and USB for PC
Temperature range
10 - 45 °C
Air humidity
Max. 85 % r.H
Dimensions
300 x 210 x 300 mm (LxWxH)
Weight, net (gross)
23 kg
More Information
Product Specifications
Measuring Range
0 - 10 mm, (25 mm optional, Code E)
Resolution
0.001 mm
Accuracy
± 0.002 mm
Depth of jaw
160 mm
Measuring system
Capazitive -> Sylvac
Display
LCD 6 digit, 8.5 mm high
Measuring unit
mm or inch
Preselection of the measuring range
Optional
Feeler shape and surface pressure
According international standards DIN, EN and ISO
Adjustable dwell time
Optional
Output signal
RS 232 for printer and USB for PC
Temperature range
10 - 45 °C
Air humidity
Max. 85 % r.H
Dimensions
300 x 210 x 300 mm (LxWxH)
Weight, net (gross)
23 kg
Product Features
Rigid housing frame Separate measuring block, encased against outside external impacts, for highest accuracy and repeatability Optional: Preselection of the measuring range Optional: Adjustable dwell time Footpedal included Switch-selectable measuring units mm / inch Optional: software for data transfer and analysis - Part No. SW-50 Motor-driven calliper movement Seven-segment display Resolution 0.01 mm - standard, 0.001 mm - optional (0.001 mm is standard for D-2005-P, D-2005-F)
