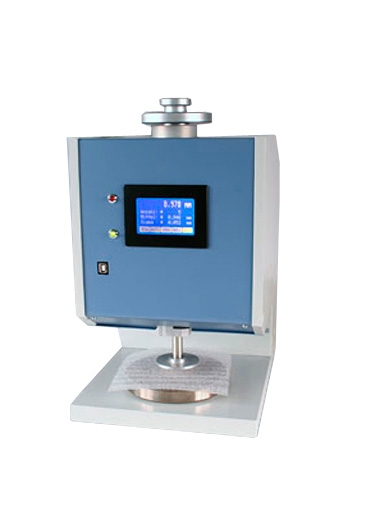

Checkline D-2010-HY Precision Material Thickness Gauge for Hygenic Paper
The Checkline D-2010-HY Precision Material Thickness Gauge for Hygenic Paper is ideal to determine the material thickness of all non-woven fabrics. With these instruments the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber etc. According to international standards DIN, EN and ISO
Rigid housing frame Resolution 0.001 mm - standard Separate measuring block, incased against outside external impacts, for highest accuracy and repeatability Motorized feeler movement Selectable measuring units mm / inch Includes Calibration Certificate USB for data transmission and RS 232 for printer Graphic display for readings and statistics
Measuring Range
0 - 10 mm, option 0 - 25 mm
Resolution
0.01 mm
Accuracy
&plusmm;0.002 mm
Depth of Jaw
160 mm
Measuring System
Capazitive -> Sylvac
Display
Graphic Display
Measuring Unit
mm or inch (switchable)
Stroke in mm
Level 1 = 2.0, level 2 = 3.5, level 3 = 5.0, level 4 = 6.5 and level 5 = 10.5 mm (full measuring range)
Residence Time
1 - 60 seconds
Numberof Measuring
Up to 50 per test series
Feeler Shape and Surface Pressure
According international Standards DIN, EN and ISO
Output Signal
RS 232 for printer and USB for PC
Temperature Range
10 - 45 °C
Air humidity
85 % RH, max
Dimensions
250 x 310 x 300 mm (LxWxH)
Weight, net (gross)
23 kg (26 kg)
D-2010 Precision Material Thickness Gauge Software Foot pedal USB cable AC adapter Operating instructions Packing case
More Information
Product Specifications
Measuring Range
0 - 10 mm, option 0 - 25 mm
Resolution
0.01 mm
Accuracy
&plusmm;0.002 mm
Depth of Jaw
160 mm
Measuring System
Capazitive -> Sylvac
Display
Graphic Display
Measuring Unit
mm or inch (switchable)
Stroke in mm
Level 1 = 2.0, level 2 = 3.5, level 3 = 5.0, level 4 = 6.5 and level 5 = 10.5 mm (full measuring range)
Residence Time
1 - 60 seconds
Numberof Measuring
Up to 50 per test series
Feeler Shape and Surface Pressure
According international Standards DIN, EN and ISO
Output Signal
RS 232 for printer and USB for PC
Temperature Range
10 - 45 °C
Air humidity
85 % RH, max
Dimensions
250 x 310 x 300 mm (LxWxH)
Weight, net (gross)
23 kg (26 kg)
Product Features
Rigid housing frame Resolution 0.001 mm - standard Separate measuring block, incased against outside external impacts, for highest accuracy and repeatability Motorized feeler movement Selectable measuring units mm / inch Includes Calibration Certificate USB for data transmission and RS 232 for printer Graphic display for readings and statistics
