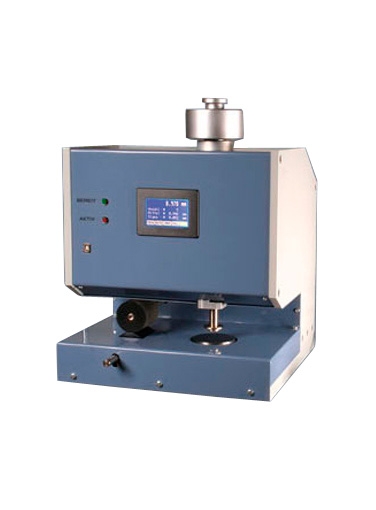

Checkline D-2020-F Motorized Precision Benchtop Thickness Gauge, Foil
The Checkline D-2020-F Motorized Precision Benchtop Thickness Gauge, Foil is ideal to determine the material thickness of all non-woven fabrics. With these instruments the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber etc. According to international standards DIN, EN and ISO
Graphic display for readings and statistics 2 selectable modes: "AUTO" - executing a series of measurements "MAN" - executing a single measurement Time saving during series measuring by ideal adjustment to the measuring problem Interface: USB for data transmission RS 232 for printer Touchscreen Interface Adjustable, automatic feed by series of measurements (travel: 10 - 100 mm, speed: slow or fast) Statistical analysis of series of measurement (Number of readings, average value, standard deviation) Additional weights for different surface pressure values are available. INQUIRE
Measuring range
0 - 10 mm, (25 mm optional, Code E)
Resolution
0.001 mm
Accuracy
±0.002 mm
Depth of jaw
160 mm
Measuring system
Capazitive -> Sylvac
Display
Graphic display Touchscreen
Measuring unit
mm or inch (switchable)
Stroke in mm
Level 1 = 2.0, level 2 = 3.5, level 3 = 5.0, level 4 = 6.5 and level 5 = 10.5 mm (full measuring range)
Feed
10, 20, 25, 40, 50, 60, 80 and 100 mm
Residence time
1 - 60 seconds
Number of measuring
Up to 50 per test series
Feeler shape and surface pressure
According international standards DIN, EN and ISO
Output signal
RS 232 for printer and USB for PC
Temperature range
10 - 45 °C
Air humidity
Max. 85 % r.H
Dimensions
300 x 300 x 320 mm (LxWxH)
Weight, net (gross)
approx. 35 kg (approx. 38 kg)
D-2020 Motorized Precision Benchtop Thickness Gauge Software Pedal Switch USB cable AC adapter Operating instructions Packing case
More Information
Product Specifications
Measuring range
0 - 10 mm, (25 mm optional, Code E)
Resolution
0.001 mm
Accuracy
±0.002 mm
Depth of jaw
160 mm
Measuring system
Capazitive -> Sylvac
Display
Graphic display Touchscreen
Measuring unit
mm or inch (switchable)
Stroke in mm
Level 1 = 2.0, level 2 = 3.5, level 3 = 5.0, level 4 = 6.5 and level 5 = 10.5 mm (full measuring range)
Feed
10, 20, 25, 40, 50, 60, 80 and 100 mm
Residence time
1 - 60 seconds
Number of measuring
Up to 50 per test series
Feeler shape and surface pressure
According international standards DIN, EN and ISO
Output signal
RS 232 for printer and USB for PC
Temperature range
10 - 45 °C
Air humidity
Max. 85 % r.H
Dimensions
300 x 300 x 320 mm (LxWxH)
Weight, net (gross)
approx. 35 kg (approx. 38 kg)
Product Features
Graphic display for readings and statistics 2 selectable modes: "AUTO" - executing a series of measurements "MAN" - executing a single measurement Time saving during series measuring by ideal adjustment to the measuring problem Interface: USB for data transmission RS 232 for printer Touchscreen Interface Adjustable, automatic feed by series of measurements (travel: 10 - 100 mm, speed: slow or fast) Statistical analysis of series of measurement (Number of readings, average value, standard deviation) Additional weights for different surface pressure values are available. INQUIRE
