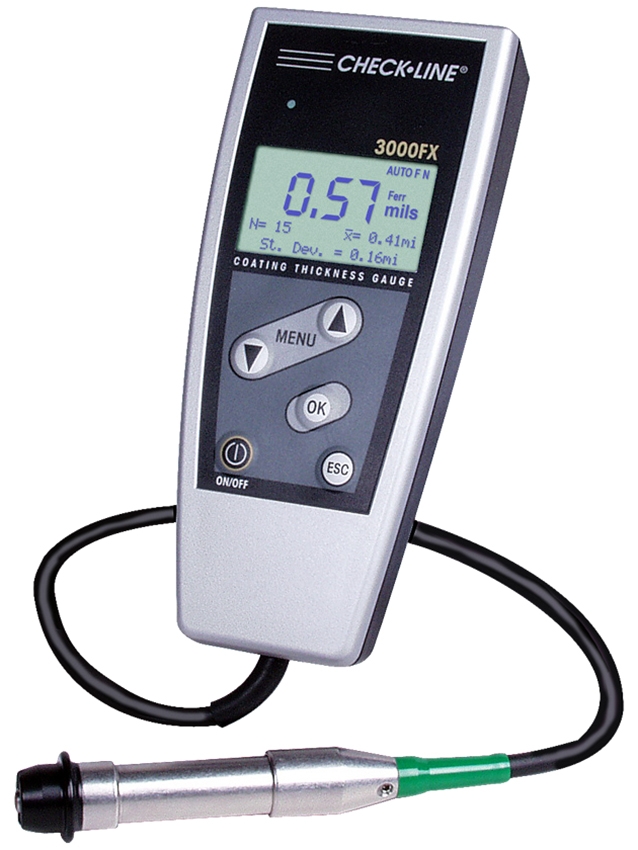

The Checkline DCF-3000FX Coating Thickness Gauge Ferrous, 0-60.0 mils is a precision instrument that features multi functional fully menu driven gauge for fast, professional and precise coating thickness measurement for varnish, paint and electroplated coatings on iron/steel and varnish, paint and anodising coatings on non-ferrous metals and on austenitic stainless steels. All external probes are machined to ultra-high standards and utilize a unique, hard-metal probe tip which prevents probe wear. A v-notched footer provides a stable footing on small cylindrical parts, which can be removed to expose a "micro-probe" sensor perfect to measure on small surfaces and parts.
factory calibration, zero calibration, foil calibration, offset-function
Memory
80 readings
Statistics Program
Number of readings, mean value, standard deviation, maximum and minimum reading of max. 10,000 readings
Data Output
Infrared IrDA Standard
Operating Temp.
32 °F - 122 °F / 0 °C - 50 °C
Surface Temp.
5° F - 140° F / -15° C - 60° C (standard) 5° - 302° F / 15° - 150° C (w/optional footer)
Storage Temp.
-4 °F to 140 °F / -20 °C to +60 °C
Power
2 AA 1.5V
Dimensions
5.6" x 2.5" x 1.2" (140 mm x 62 mm x 30 mm)
Weight
7 oz (200 g) (gauge + probe)
Protection Class
IP 52 (proof against dust and dripping water)
Standards
DIN, ISO, ASTM, BS
Kit Contents
The 3000FX Series coating thickness gauge is supplied as a complete kit with gauge, ferrous and or non-ferrous zero plate(model dependent), 2 calibration standards, 2 AA batteries, soft carrying pouch, instruction manual and calibration certificate
factory calibration, zero calibration, foil calibration, offset-function
Memory
80 readings
Statistics Program
Number of readings, mean value, standard deviation, maximum and minimum reading of max. 10,000 readings
Data Output
Infrared IrDA Standard
Operating Temp.
32 °F - 122 °F / 0 °C - 50 °C
Surface Temp.
5° F - 140° F / -15° C - 60° C (standard) 5° - 302° F / 15° - 150° C (w/optional footer)
Storage Temp.
-4 °F to 140 °F / -20 °C to +60 °C
Power
2 AA 1.5V
Dimensions
5.6" x 2.5" x 1.2" (140 mm x 62 mm x 30 mm)
Weight
7 oz (200 g) (gauge + probe)
Protection Class
IP 52 (proof against dust and dripping water)
Standards
DIN, ISO, ASTM, BS
Kit Contents
The 3000FX Series coating thickness gauge is supplied as a complete kit with gauge, ferrous and or non-ferrous zero plate(model dependent), 2 calibration standards, 2 AA batteries, soft carrying pouch, instruction manual and calibration certificate
Product Features
The 3000FX Series is a compact, lightweight coating thickness gauge for operators who require both innovative and user-friendly measuring techniques
The 3000FX Series ensures non-destructive coating thickness measurement on steel and non Ferrous metals
Data transfer to a printer or PC takes place via an infra-red interface
Up to 10 000 readings can be statistically evaluated: number of readings, mean value, standard deviation, minimum and maximum reading.
The 3000FX Series identifies the substrate and activates the appropriate measuring procedure.
Menu in a choice of three languages ensures ease of operation
The uniform contact pressure of the sensor is kept to a minimum, preventing scratches and indentations to sensitive surfaces.
Optional high temperature footer for measuring on surfaces up to 150 C/302 F
