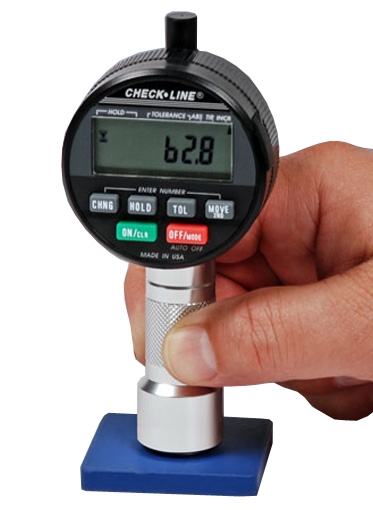

Checkline DD-100 Digital Shore Durometer Tester
The Checkline DD-100 Digital Shore Durometer Tester is the genesis of years of experience offering high quality Durometers to discriminating users. Featuring an 18mm footer that offers high stability and conforms to all international standards, the DD-100 is the ideal durometer for a wide range of shore hardness measuring applications. The DD-100 is supplied with a NIST traceable calibration certificate in foam-fitted carrying case.
Can be used in any measurement orientation as gravity does not affect readings High and low buttons for setting tolerance limits 18 mm diameter footer provides stable basis for testing and conforms to all International Standards Solid state circuitry with LCD display Holds Peak reading until reset
Resolution
0.1 Units
LCD Size
8 mm
Dimensions
128 x 57 x 36 mm
Weight
235 grams (8.4 oz.)
Power Supply
(2) 3V CR-2450 Batteries AC Adapter Optional
Warranty
1 year
Standards
Holds Peak reading until reset
Kit Contents
The DD-100 is supplied as a complete kit including the durometer, instruction manual and calibration certificate in a foam-fitted metal carrying case.
Checkline DD-100 Digital Shore Durometer Tester Calibration Certificate Instruction Manual Carrying Case
More Information
Product Specifications
Resolution
0.1 Units
LCD Size
8 mm
Dimensions
128 x 57 x 36 mm
Weight
235 grams (8.4 oz.)
Power Supply
(2) 3V CR-2450 Batteries AC Adapter Optional
Warranty
1 year
Standards
Holds Peak reading until reset
Kit Contents
The DD-100 is supplied as a complete kit including the durometer, instruction manual and calibration certificate in a foam-fitted metal carrying case.
Product Features
Can be used in any measurement orientation as gravity does not affect readings High and low buttons for setting tolerance limits 18 mm diameter footer provides stable basis for testing and conforms to all International Standards Solid state circuitry with LCD display Holds Peak reading until reset
