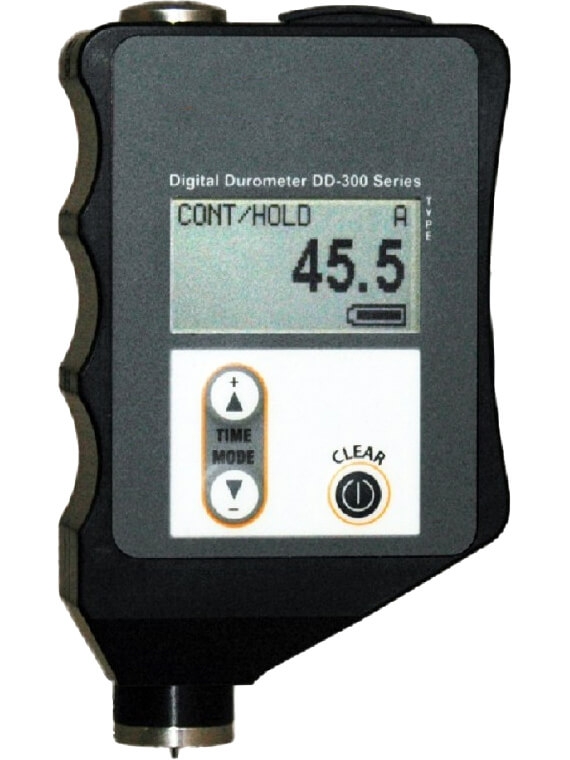

Checkline DD-300 Digital Precision Durometer
The Checkline DD-300 Digital Precision Durometer is a range takes rubber / plastic hardness testing to the next level. This DD-300 hardness tester has been designed to have almost no internal friction and therefore meets the highest quality standards. The entire internal movement is guided by bearings and makes this one of the best digital durometers available today. The DD-300 Durometer is available in Shore A, C, D, O, OO, AO, DO and Asker C.
Highly accurate and repetitive Timer function to take measurement after (0-15) seconds Conform to DIN ISO 7619-1, ISO 868, ISO 7619-1 and ASTM D 2240 No internal friction due to precision engineered bearing system for internally moving parts
Measuring Modes
Continuous Mode | Peak Mode | Timer Mode
Measuring range
0.5 - 100 units
Resolution
0.1
Display
LCD digit 8 mm high
Data Output Port
Opto RS232
Battery
Re-chargeable 3.6V 1/2AA Size LI-SOCl2
Continuous Operating Time Battery
Approx. 18 hours
Auto Off
After approx. 1 minute
Power Supply
Input - 100-240 VAC | Output
Dimensions
112 x 64 x 26 mm (HxWxD)
Weight (net)
250 g
Warranty
1 year
Accuracy
± 0.5

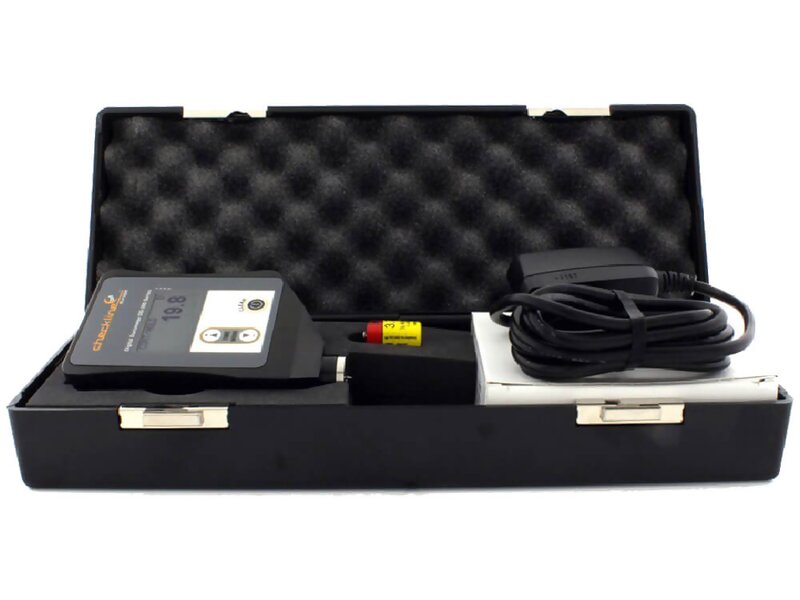

DD-300 Digital Precision Durometer AC power supply (100 - 240) Calibration Certificate Battery Instruction Manual Carrying Case
More Information
Product Specifications
Measuring Modes
Continuous Mode | Peak Mode | Timer Mode
Measuring range
0.5 - 100 units
Resolution
0.1
Display
LCD digit 8 mm high
Data Output Port
Opto RS232
Battery
Re-chargeable 3.6V 1/2AA Size LI-SOCl2
Continuous Operating Time Battery
Approx. 18 hours
Auto Off
After approx. 1 minute
Power Supply
Input - 100-240 VAC | Output
Dimensions
112 x 64 x 26 mm (HxWxD)
Weight (net)
250 g
Warranty
1 year
Accuracy
± 0.5
Product Features
Highly accurate and repetitive Timer function to take measurement after (0-15) seconds Conform to DIN ISO 7619-1, ISO 868, ISO 7619-1 and ASTM D 2240 No internal friction due to precision engineered bearing system for internally moving parts
Downloads
comming soon
