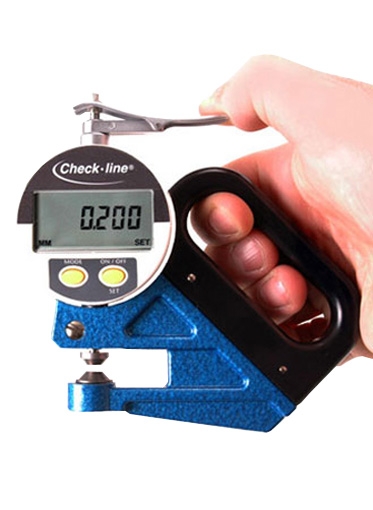

Checkline DDM-2020 Digital Precision Foil Thickness Gauge with Freeler Pressure of 2.0N, Range 1"
The Checkline DDM-2020 Digital Precision Foil Thickness Gauge with Freeler Pressure of 2.0N, Range 1" is a handy thickness gauge used exclusively to measure the thickness of thin foils. The frame has the required rigidity, the insulation of the handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Gauge.
Insulated handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge Operated by lifting device, self closing, available with 0.7 N or 2.0 N pressure Special purpose model with resolution of .00005" (0.001 mm / 1 m) Accuracy of .00012" (3 m)
Resolution
.00005" (0.001 mm / 1 µm)
Measuring range
.1" (3 mm)
Accuracy
± .00012" (3 µm)
Depth of jaw
1.18" (30 mm)
Feeler Shape
F - 6,35 mm Ø flat
Measuring pressure
available with 0.7 N and 2.0 N closing pressure
Measurment by spring load
Operated by lifting device - self closing
Warranty
1 year
More Information
Product Specifications
Resolution
.00005" (0.001 mm / 1 µm)
Measuring range
.1" (3 mm)
Accuracy
± .00012" (3 µm)
Depth of jaw
1.18" (30 mm)
Feeler Shape
F - 6,35 mm Ø flat
Measuring pressure
available with 0.7 N and 2.0 N closing pressure
Measurment by spring load
Operated by lifting device - self closing
Warranty
1 year
Product Features
Insulated handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge Operated by lifting device, self closing, available with 0.7 N or 2.0 N pressure Special purpose model with resolution of .00005" (0.001 mm / 1 m) Accuracy of .00012" (3 m)
