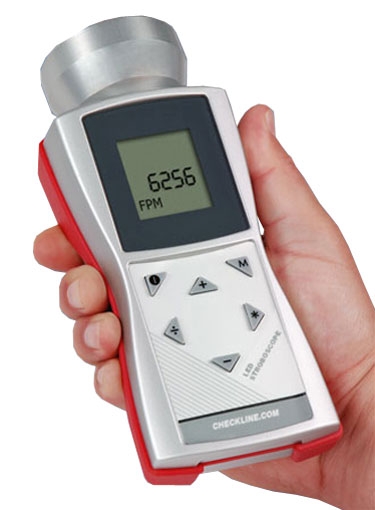

The Checkline DS-2000LED Battery Powered LED Stroboscope is designed for maximum portability, performance and ease of use, the DS-2000LED is a hand-held battery powered LED Digital Stroboscope for use in speed measurement as well as for motion analysis. It is fitted with seven (7) state-of-the-art, super-bright LEDs mounted in a precision-machined aluminum head with optimized optics, providing the highest light output of similar strobes on the market. The Checkline DS-2000LED can operate even at the highest flash rates for up to six hours continuously on a single set of three (3) standard AA-batteries . Keypad controls adjust flash rate in single increments as well as special keys for 2X and ÷2 functions. Other user-programmable settings include flash duration, phase shift, delay and much more.
3x AA size batteries or 3x NiMH rechargeable batteries
Housing Material
Aluminum / ABS Heavy duty design
Dimensions
191 x 82 x 60 mm / 7.5 x 3.2 x 2.4 inch
Weight Approx
400g (including batteries)
Temperature Range
0° - 45° C / 32° - 113° F
Battery Life
NiMH
Warranty
2 Years
Principle
Short-circuit and overvoltage proff transistor output to the optocoupler control, non-isolated
Level max
NPR, max 32V
Pulse Length
Adjustable
Maximum current
50mA
Reverse voltage protection
Yes
Kit Contents
DS-2000LED Strobe is supplied in foam-fitted carrying case with 2 sets of 3x-AA batteries (6 batteries total), Traceable Calibration Certificate and Operating Instruction Manual.
3x AA size batteries or 3x NiMH rechargeable batteries
Housing Material
Aluminum / ABS Heavy duty design
Dimensions
191 x 82 x 60 mm / 7.5 x 3.2 x 2.4 inch
Weight Approx
400g (including batteries)
Temperature Range
0° - 45° C / 32° - 113° F
Battery Life
NiMH
Warranty
2 Years
Principle
Short-circuit and overvoltage proff transistor output to the optocoupler control, non-isolated
Level max
NPR, max 32V
Pulse Length
Adjustable
Maximum current
50mA
Reverse voltage protection
Yes
Kit Contents
DS-2000LED Strobe is supplied in foam-fitted carrying case with 2 sets of 3x-AA batteries (6 batteries total), Traceable Calibration Certificate and Operating Instruction Manual.
Product Features
Produces the brightest flash and sharpest image over the entire range to 300,000 FPM
Lifetime LEDs do not wear-out or need replacement
NIST-Traceable Calibration Certificate provided
Three (3) AA-Batteries provide six hours of continuous use operation
Market-leading 1500 Lux brightness (measured at 6000 fpm at a distance of 20 cm)
Flash rate is adjusted using front panel keys with single-unit increments or by using x2 and 2 buttons. Phase shift adjustment is also possible.
External Trigger Input/Output is optionally available. Specify model DS-2000LED-OT
User-selected units of Hz or FPM (Flashes Per Minute)
