Checkline DS-2000LED-LSR Pocket Laser LED Stroboscope Complete Kit with Laser Tach Mode and Auto-Sync Function
The Checkline DS-2000LED-LSR Pocket Laser LED Stroboscope Complete Kit with Laser Tach Mode and Auto-Sync Function is an instrument that combines the observational features of an LED stroboscope with convenience of a laser tachometer to create the ideal inspection tool. A built-in laser sensor automatically syncs the stroboscope flash rate to the RPM of the rotating object for instant speed measurement while freezing the motion. The Checkline DS-2000LED-LSR Pocket Laser LED Stroboscope Complete Kit with Laser Tach Mode and Auto-Sync Function is fitted with six super-bright LEDs mounted in a precision-machined aluminum head with optimized optics, providing up to 9000 lux light output.
Traceable Calibration Certificate provided Produces the brightest flash and sharpest image over the entire range to 300,000 FPM Lifetime LEDs do not wear-out or need replacement Three (3) AA-Batteries provide six hours of continuous use operation 9000 Lux brightness (measured at a distance of 8") Intuitive controls allow user to quickly adjust flash rate and shift phase User-selected units of Hz or FPM (Flashes Per Minute) IP 65 rated housing provides protection from water jets Made in Germany 2-Year warranty
Frequency Range
30 - 300,000 FPM (0.5 - 5000Hz)
Flash Duration
Adjustable (1 usec up to 8522 usec)
Accuracy
± 0.02% ± 500ns
Resolution
± 0.1 FPM (30 - 999) ± 1 FPM 1000+
Brightness
9000 Lux @ 200mm (8 inch)
Protection Class
IP65 (Protection from Dust and Water Jets)
Display
LCD, multiple lines
Certification
CE (as per EU norms)
Flash Color
Approx. 6.500 K
Power Supply
3x AA size batteries or 3x NiMH rechargeable batteries
Housing Material
Aluminum / ABS Heavy duty design
Dimensions
191 x 82 x 60 mm / 7.5 x 3.2 x 2.4 inch
Weight Approx
400g (including batteries)
Temperature Range
0° - 45° C / 32° - 113° F
Battery Life
NiMH
Default Settings
FPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0
Trigger Input (-OT version)
3 - 32 V, NPN + PNP Low Level
Trigger Output (-OT version)
Level

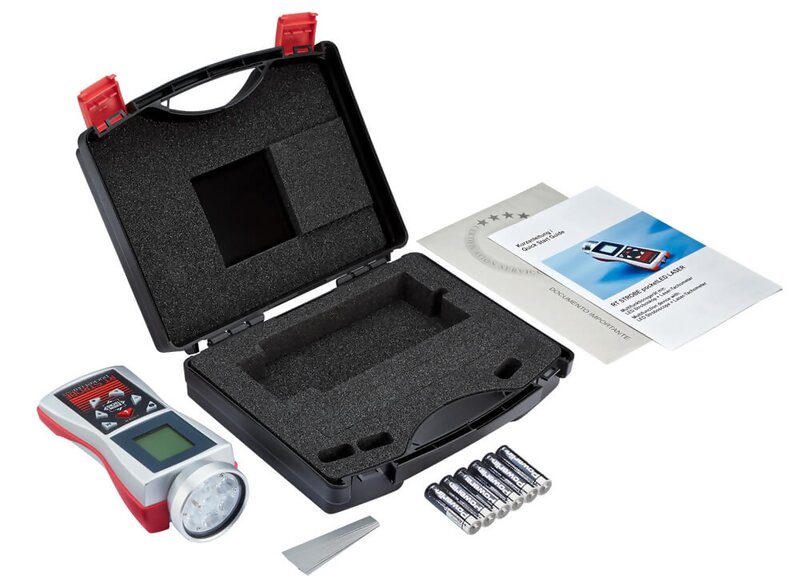

DS-2000LED-LSR Pocket Laser LED Stroboscope Traceable Calibration Certificate Reflective Tape 2 sets of 3x-AA batteries (6 batteries total) Instruction Manual Carrying Case
More Information
Product Specifications
Frequency Range
30 - 300,000 FPM (0.5 - 5000Hz)
Flash Duration
Adjustable (1 usec up to 8522 usec)
Accuracy
± 0.02% ± 500ns
Resolution
± 0.1 FPM (30 - 999) ± 1 FPM 1000+
Brightness
9000 Lux @ 200mm (8 inch)
Protection Class
IP65 (Protection from Dust and Water Jets)
Display
LCD, multiple lines
Certification
CE (as per EU norms)
Flash Color
Approx. 6.500 K
Power Supply
3x AA size batteries or 3x NiMH rechargeable batteries
Housing Material
Aluminum / ABS Heavy duty design
Dimensions
191 x 82 x 60 mm / 7.5 x 3.2 x 2.4 inch
Weight Approx
400g (including batteries)
Temperature Range
0° - 45° C / 32° - 113° F
Battery Life
NiMH
Default Settings
FPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0
Trigger Input (-OT version)
3 - 32 V, NPN + PNP Low Level
Trigger Output (-OT version)
Level
Product Features
Traceable Calibration Certificate provided Produces the brightest flash and sharpest image over the entire range to 300,000 FPM Lifetime LEDs do not wear-out or need replacement Three (3) AA-Batteries provide six hours of continuous use operation 9000 Lux brightness (measured at a distance of 8") Intuitive controls allow user to quickly adjust flash rate and shift phase User-selected units of Hz or FPM (Flashes Per Minute) IP 65 rated housing provides protection from water jets Made in Germany 2-Year warranty
