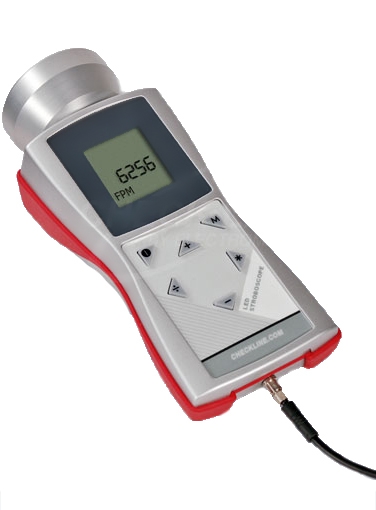

Checkline DS-2000LED-OT LED Stroboscope
The Checkline DS-2000LED-OT LED Stroboscope is designed for maximum performance, portability and ease of use, the DS-2000LED-OT is a hand-held battery powered LED Digital Stroboscope for use in speed measurement as well as for motion analysis. It is fitted with seven (7) state-of-the-art, super-bright LEDs mounted in a precision-machined aluminum head with optimized optics, providing the highest light output of similar strobes on the market. Produces up to 3000 Lux! The Checkline DS-2000LED-OT can operate even at the highest flash rates for up to six hours continuously on a single set of three (3) standard AA-batteries . Keypad controls adjust flash rate in single increments as well as special keys for 2X and ÷2 functions. Other user-programmable settings include flash duration, phase shift, delay and much more.
Produces the brightest flash and sharpest image over the entire range to 300,000 FPM Lifetime LEDs do not wear-out or need replacement NIST-Traceable Calibration Certificate provided Three (3) AA-Batteries provide six hours of continuous use operation Market-leading 3000 Lux brightness (measured at 6000 fpm at a distance of 12") Intuitive controls allow user to quickly adjust flash rate and shift phase External Trigger Input/Output is optionally available. Specify model DS-2000LED-OT User-selected units of Hz or FPM (Flashes Per Minute) 2-Year warranty IP 65 rated housing provides protection from water jets
Frequency Range
30 - 300,000 FPM (0.5 - 5000Hz)
Flash Duration
Adjustable (1 usec up to 8522 usec)
Accuracy
± 0.02% ± 500ns
Resolution
± 0.1 FPM (30 - 999) ± 1 FPM 1000+
Brightness
3000 Lux @ 6000 FPM / 30cm (12 inch)
Protection Class
IP65 (Protection from Dust and Water Jets)
Display
LCD, multiple lines
Certification
CE (as per EU norms)
Flash Color
Approx. 6.500 K
Power Supply
3x AA size batteries or 3x NiMH rechargeable batteries
Housing Material
Aluminum / ABS Heavy duty design
Dimensions
191 x 82 x 60 mm / 7.5 x 3.2 x 2.4 inch
Weight Approx
400g (including batteries)
Temperature Range
0° - 45° C / 32° - 113° F
Battery Life
NiMH
Warranty
2 Years
Trigger Input
3 - 32 V, NPN + PNP Low Level
Trigger Output
Level
Default Settings
FPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0
More Information
Product Specifications
Frequency Range
30 - 300,000 FPM (0.5 - 5000Hz)
Flash Duration
Adjustable (1 usec up to 8522 usec)
Accuracy
± 0.02% ± 500ns
Resolution
± 0.1 FPM (30 - 999) ± 1 FPM 1000+
Brightness
3000 Lux @ 6000 FPM / 30cm (12 inch)
Protection Class
IP65 (Protection from Dust and Water Jets)
Display
LCD, multiple lines
Certification
CE (as per EU norms)
Flash Color
Approx. 6.500 K
Power Supply
3x AA size batteries or 3x NiMH rechargeable batteries
Housing Material
Aluminum / ABS Heavy duty design
Dimensions
191 x 82 x 60 mm / 7.5 x 3.2 x 2.4 inch
Weight Approx
400g (including batteries)
Temperature Range
0° - 45° C / 32° - 113° F
Battery Life
NiMH
Warranty
2 Years
Trigger Input
3 - 32 V, NPN + PNP Low Level
Trigger Output
Level
Default Settings
FPM 1000, Hz 16.6, PULSE µs 333, PULSE deg 2°, DELAY ms 0.0, PHASE deg 0°, DIVIDER 1, OPTION 0
Product Features
Produces the brightest flash and sharpest image over the entire range to 300,000 FPM Lifetime LEDs do not wear-out or need replacement NIST-Traceable Calibration Certificate provided Three (3) AA-Batteries provide six hours of continuous use operation Market-leading 3000 Lux brightness (measured at 6000 fpm at a distance of 12") Intuitive controls allow user to quickly adjust flash rate and shift phase External Trigger Input/Output is optionally available. Specify model DS-2000LED-OT User-selected units of Hz or FPM (Flashes Per Minute) 2-Year warranty IP 65 rated housing provides protection from water jets
