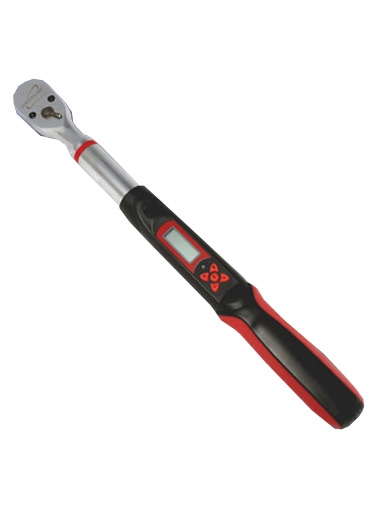

Checkline DTW-625f Digital Torque Wrench, Capacity 625 lb-ft / 850 N-m, Drive Size 3/4"
The Checkline DTW-625f Digital Torque Wrench, Capacity 625 lb-ft / 850 N-m, Drive Size 3/4" is designed for simple and precise measurement of industrial, automotive, aerospace and many other applications. The DTW displays Real-Time and Peak torque on a large LCD display in ft-lb, in-lb or N-m, user selectable. The Checkline DTW features High-Lo set points that indicate a desired torque value with a bright LED and audible beep.
Displays in-lbs, ft-lbs & N-m (User selectable) CW and CCW operation Peak or Real-Time (track) mode (User Selectable) Buzzer and LED indicator for the pre-settable target torque 50 data point memory Auto shutdown after 5 minutes of non use Includes Calibration Certificate Supplied as a complete kit and rugged carrying case
Accuracy
CW - ±2.5% / CCW - ±3.5%
Memory
50 Readings
Operation Mode
Peak hold/ Track
Unit Selection
ft-lb, in-lb, N-m
Head Type
Lever type Ratchet
Gear Teeth
36
Battery
2x AA
Battery Life
110 Continuous Hours 1 Year Standby
Operating Temperature
-10°C ~ 60°C
Storage Temperature
-20°C ~ 70°C
Humidity
Up to 90% non-condensing
DTW Electronic Torque Wrench CE Certified Carrying Case
More Information
Product Specifications
Accuracy
CW - ±2.5% / CCW - ±3.5%
Memory
50 Readings
Operation Mode
Peak hold/ Track
Unit Selection
ft-lb, in-lb, N-m
Head Type
Lever type Ratchet
Gear Teeth
36
Battery
2x AA
Battery Life
110 Continuous Hours 1 Year Standby
Operating Temperature
-10°C ~ 60°C
Storage Temperature
-20°C ~ 70°C
Humidity
Up to 90% non-condensing
Product Features
Displays in-lbs, ft-lbs & N-m (User selectable) CW and CCW operation Peak or Real-Time (track) mode (User Selectable) Buzzer and LED indicator for the pre-settable target torque 50 data point memory Auto shutdown after 5 minutes of non use Includes Calibration Certificate Supplied as a complete kit and rugged carrying case
