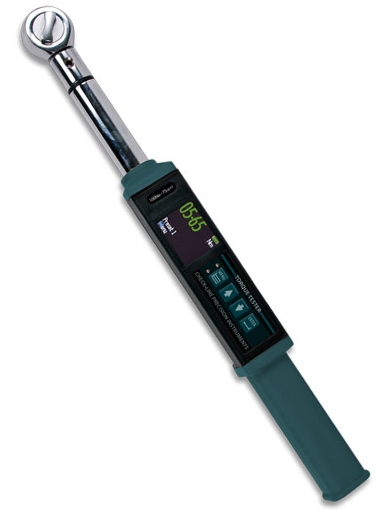

Checkline ETW-SPA Digital Torque Wrench with Angle Measurement, Memory and Data Output
The Checkline ETW-SPA Digital Torque Wrench with Angle Measurement, Memory and Data Output is designed for precision torque and angle measurement. The large OLED display indicates real-time, peak torque and angle. 7 measuring units are operator selectable, (lb-in, lb-ft, oz-in, N-m, cN-m, kgf-m, kfg-cm). Users can program 99 preset torque targets for fast and accurate torque application on repetitive tasks. The Checkline ETW-SPA provides visual and audible alerts as you approach and hit the target value.
Bi-Directional Accuracy better than 1% from 10%-100% of Capacity Wireless Data Outuput OPTIONAL, inquire Large Color OLED Screen. High Visibility, Warning Signals Selectable Languages: English, Chinese, French, German, Italian, Polish, Portuguese, Russian and Spanish Battery Life of over 120 hours Includes Traceable Calibration Certificate in accordance with ISO 6789:2003 USB output & data transfer / analysis software Memory (2000+ Measurements) Selectable measuring units: lb-in, lb-ft, oz-in, N-m, cN-m, kgf-m, kfg-cm Angle Measurement OPTIONAL, inquire ASCII Data Outuput OPTIONAL, inquire
Accuracy
±1% (Of indicated) 10 - 100% of capacity (readings start at 5%)
Sampling Frequency
500 Hz (500 samples/sec)
Display Update Rate
4 Hz (4 times/sec)
Memory
2000 readings (Standard) 6000 readings (Optional)
Operation Mode
Peak hold/ Track /Preset
Unit Selection
Lb-in, Lb-ft, N-m, N-cm, Kgf-m, Kgf-cm, Oz-in
Length
10-100 Nm
Head Type
Robust Bi-Directional Ratchet
Battery
4x AA
Battery Life
120 Hours
Operating Temperature
-10°C ~ 60°C
Storage Temperature
-20°C ~ 70°C
Humidity
Up to 90% non-condensing
Warranty
1 Years
More Information
Product Specifications
Accuracy
±1% (Of indicated) 10 - 100% of capacity (readings start at 5%)
Sampling Frequency
500 Hz (500 samples/sec)
Display Update Rate
4 Hz (4 times/sec)
Memory
2000 readings (Standard) 6000 readings (Optional)
Operation Mode
Peak hold/ Track /Preset
Unit Selection
Lb-in, Lb-ft, N-m, N-cm, Kgf-m, Kgf-cm, Oz-in
Length
10-100 Nm
Head Type
Robust Bi-Directional Ratchet
Battery
4x AA
Battery Life
120 Hours
Operating Temperature
-10°C ~ 60°C
Storage Temperature
-20°C ~ 70°C
Humidity
Up to 90% non-condensing
Warranty
1 Years
Product Features
Bi-Directional Accuracy better than 1% from 10%-100% of Capacity Wireless Data Outuput OPTIONAL, inquire Large Color OLED Screen. High Visibility, Warning Signals Selectable Languages: English, Chinese, French, German, Italian, Polish, Portuguese, Russian and Spanish Battery Life of over 120 hours Includes Traceable Calibration Certificate in accordance with ISO 6789:2003 USB output & data transfer / analysis software Memory (2000+ Measurements) Selectable measuring units: lb-in, lb-ft, oz-in, N-m, cN-m, kgf-m, kfg-cm Angle Measurement OPTIONAL, inquire ASCII Data Outuput OPTIONAL, inquire
