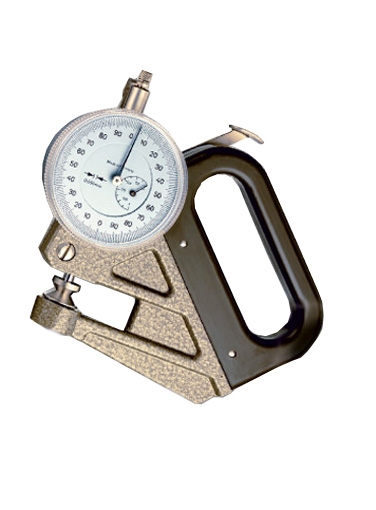

Checkline F-1000-30 Dial Thickness Gauge For Foils & Thin Materials, Range 1 mm, Depth of Jaw: 30mm
The Checkline F-1000-30 Dial Thickness Gauge For Foils & Thin Materials, Range 1 mm, Depth of Jaw: 30mm is a special-purpose thickness gauge for foils and thin materials with a resolution of 0.001 mm. Insulated handle prevents transfer of heat from the operators´s hand to the handle which helps to guarantee the highest accuracy.
Special purpose model with resolution of 0.001 mm (1 m) Operating by lifting device - self closing Insulated handle prevents transfer of heat from the operatorss hand to the handle; to guarantee highest accuracy
Resolution
0.001 mm
Measuring range
1 mm
Accuracy
± 5 µm
Depth of jaw
30mm
Scale diameter
58 mm
Measuring pressure
2.0 N (On request
Scale
1 revolution = 0.02 mm (2 x 0 - 100)
Feeler shape
F - 6.35 mm Ø flat
Measurment by spring load
Operating by lifting device - self closing
Weight, net
340 g
Warranty
1 year

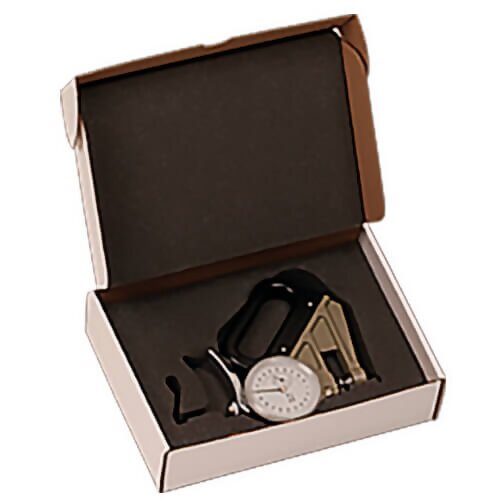

F-1000-30 Dial Thickness Gauge Transport Packing Case
More Information
Product Specifications
Resolution
0.001 mm
Measuring range
1 mm
Accuracy
± 5 µm
Depth of jaw
30mm
Scale diameter
58 mm
Measuring pressure
2.0 N (On request
Scale
1 revolution = 0.02 mm (2 x 0 - 100)
Feeler shape
F - 6.35 mm Ø flat
Measurment by spring load
Operating by lifting device - self closing
Weight, net
340 g
Warranty
1 year
Product Features
Special purpose model with resolution of 0.001 mm (1 m) Operating by lifting device - self closing Insulated handle prevents transfer of heat from the operatorss hand to the handle; to guarantee highest accuracy
