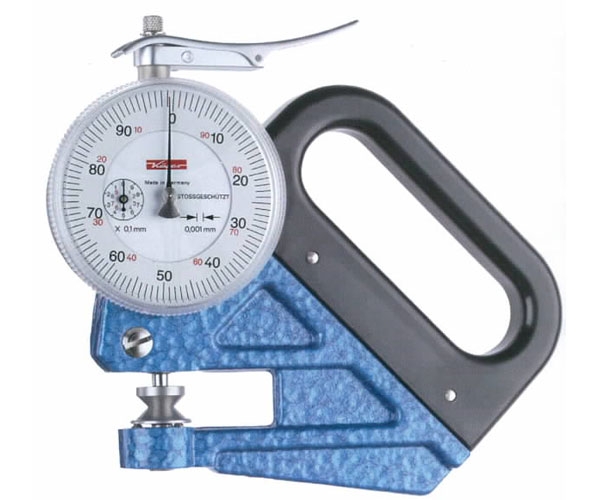

Checkline F-1101-30-01 Thin Foil Dial Thickness Gauge, Measuring Range 0.1 mm
The Checkline F-1101-30-01 Thin Foil Dial Thickness Gauge, Measuring Range 0.1 mm is used exclusively to measure the thickness of thin foils. The frame has the required rigidity, the insulation of the handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge. The applied pressure is approximately 2 N.
Special purpose model with resolution of 0.001 mm (1 m) Operating by lifting device - self closing - 2 N pressure Insulated handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge High accuracy of 0.5 m
Resolution
0.001 mm
Measuring range
0.1 mm
Accuracy
± 0.5 µm
Depth of jaw
30 mm
Scale diameter
58 mm
Measuring pressure
2.0 N
Scale
1 revolution = 0.1 mm
Feeler shape
F - 6.35 mm Ø flat
Measurment by spring load
Operating by lifting device - self closing
Warranty
1 year
More Information
Product Specifications
Resolution
0.001 mm
Measuring range
0.1 mm
Accuracy
± 0.5 µm
Depth of jaw
30 mm
Scale diameter
58 mm
Measuring pressure
2.0 N
Scale
1 revolution = 0.1 mm
Feeler shape
F - 6.35 mm Ø flat
Measurment by spring load
Operating by lifting device - self closing
Warranty
1 year
Product Features
Special purpose model with resolution of 0.001 mm (1 m) Operating by lifting device - self closing - 2 N pressure Insulated handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge High accuracy of 0.5 m
