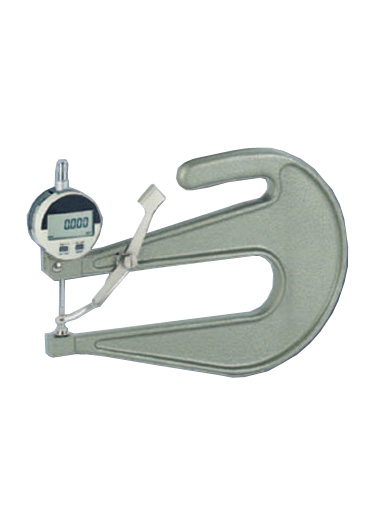

Checkline FD-200-25 Digital Thickness Gauge
The Checkline FD-200-25 Digital Thickness Gauge is a precision instrument that has the benefit of an easy to read LCD display, combined with the highest accuracy. The user can select either to display thickness in mm or in inches. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.
Operating by lifting device - self closing User selectable units mm and inch Easy to read LCD Display Resolution 0.001 mm (0.0001 inch) RS 232 output for datacollection Optional traceable certificate available
Resolution
0.001 mm / 0.0001 inch
Measuring range
0 - 25 mm / 1 inch
Depth of jaws
200 mm
Display
LCD 6 digit, 8.5 mm high
Measuring principle
Capacitive
Measuring pressure
< 1.4 N
Feeler shape
a,b,c,d or e
Lifting device
Operating by lifting device - self closing
Data output
RS 232, optical coupling
Power supply
Battery 3 V Lithium, CR 2032
Temperature range
10 - 45°C
Weight, net
1000 g
Thickness gauge FD-200-25 Battery Transport Packing Case
More Information
Product Specifications
Resolution
0.001 mm / 0.0001 inch
Measuring range
0 - 25 mm / 1 inch
Depth of jaws
200 mm
Display
LCD 6 digit, 8.5 mm high
Measuring principle
Capacitive
Measuring pressure
< 1.4 N
Feeler shape
a,b,c,d or e
Lifting device
Operating by lifting device - self closing
Data output
RS 232, optical coupling
Power supply
Battery 3 V Lithium, CR 2032
Temperature range
10 - 45°C
Weight, net
1000 g
Product Features
Operating by lifting device - self closing User selectable units mm and inch Easy to read LCD Display Resolution 0.001 mm (0.0001 inch) RS 232 output for datacollection Optional traceable certificate available
