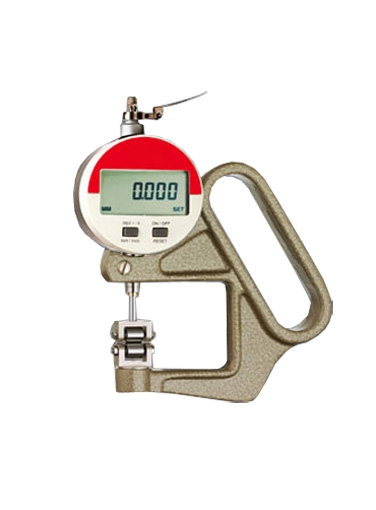

Checkline FD-50R Digital Thickness Gauge
The Checkline FD-50R Digital Thickness Gauge is used for measuring running materials like tapes, wires etc. It has the benefit of an easy to read LCD display, combined with the highest accuracy. The user can select either to display thickness in mm or in inches.
For measuring moving objects, roller width 8.7 mm Opening by lifting device (lever) - self closing RS 232 output for data collection Measuring by spring force Max. Line speed 150 m/min For better guiding the measured material the lower roller is standard equipped with flanges, optional available without flange
Resolution
0.001 mm / 0.0001 inch
Measuring range
0 - 10 mm / 0.4 inch
Depth of jaw
2" (50 mm)
Measuring pressure
< 1.4 N
Measuring principle
Self closing
Display
LCD 6 digit, 8.5 mm high
Temperature range
10 - 45 °C
Battery
3 V Lithium, CR 2032
Data output
RS 232, galvanic isolation
More Information
Product Specifications
Resolution
0.001 mm / 0.0001 inch
Measuring range
0 - 10 mm / 0.4 inch
Depth of jaw
2" (50 mm)
Measuring pressure
< 1.4 N
Measuring principle
Self closing
Display
LCD 6 digit, 8.5 mm high
Temperature range
10 - 45 °C
Battery
3 V Lithium, CR 2032
Data output
RS 232, galvanic isolation
Product Features
For measuring moving objects, roller width 8.7 mm Opening by lifting device (lever) - self closing RS 232 output for data collection Measuring by spring force Max. Line speed 150 m/min For better guiding the measured material the lower roller is standard equipped with flanges, optional available without flange
