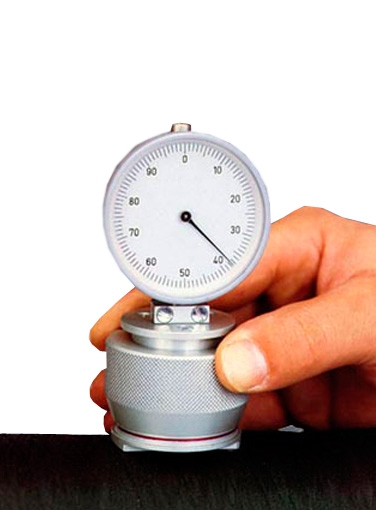

Checkline HP Textile Durometer, Yarn Package Durometer Hardness Tester
The Checkline HP Textile Durometer, Yarn Package Durometer Hardness Tester is a precision instrument that accurately measures the winding density of textile bobbins, beams, spools, spindles, cones, quills, dye packages, rolls, etc.
Hardness Tester for Textiles and Yarn Package Hardness Testing Constant-pressure indicating system assures uniform test pressure eliminating false readings due to differences between operators Supplied in a foam-fitted carrying case Operation is as easy as pressing the spring-loaded knurled aluminum shell down to the red line.
Indenter
Cone 35°, 1.3 mm Ø
Depth of indentation
0 - 2.5 mm
Test pressure
approx. 12.5 N
Measuring spring force
0.55 - 8.065 N
Display range
0 - 100 Scale
Scale diameter
56 mm
Weight, net (gross)
approx. 300g (500g)
Dimensions
50 x 50 x 110 mm (L x W x H)
Kit Contents
The HP Textile hardness tester is supplied as a complete kit with the gauge and instruction manual in a foam-fitted carrying case.
More Information
Product Specifications
Indenter
Cone 35°, 1.3 mm Ø
Depth of indentation
0 - 2.5 mm
Test pressure
approx. 12.5 N
Measuring spring force
0.55 - 8.065 N
Display range
0 - 100 Scale
Scale diameter
56 mm
Weight, net (gross)
approx. 300g (500g)
Dimensions
50 x 50 x 110 mm (L x W x H)
Kit Contents
The HP Textile hardness tester is supplied as a complete kit with the gauge and instruction manual in a foam-fitted carrying case.
Product Features
Hardness Tester for Textiles and Yarn Package Hardness Testing Constant-pressure indicating system assures uniform test pressure eliminating false readings due to differences between operators Supplied in a foam-fitted carrying case Operation is as easy as pressing the spring-loaded knurled aluminum shell down to the red line.
