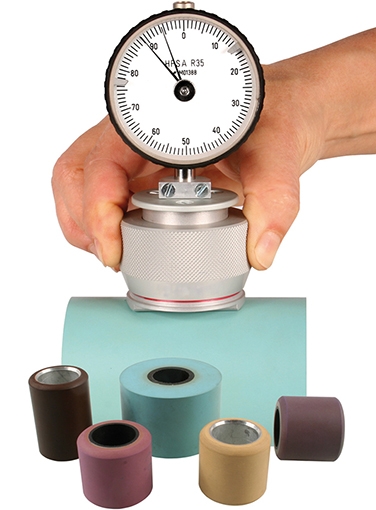

Checkline HPSA-R35 Shore A Durometer for Nip / Rubber Rollers, Roller Diameters up to 2.75" / 70mm
The Checkline HPSA-R35 Shore A Durometer for Nip / Rubber Rollers, Roller Diameters up to 2.75" / 70mm is used to measure the hardness of cots, pressure rollers and many other rubber coated rollers, etc. The correct Shore A hardness of the cots is a critical factor to get the desired yarn structure and quality. As cots are abrasive, the hardness should be checked from time to time as they age.
Constant-pressure indicating system assures uniform test pressure eliminating false readings due to differences between operators. Supplied in a foam-fitted carrying case (Complete Kit) Operation is as easy as pressing the spring-loaded knurled aluminum shell down to the red line. Standard Memory Pointer to capture peak measurement.
Work Face Radius
HPSA-R20 - 20mm HPSA-R35 - 35mm HPSA-R55 - 55mm
Indenter
Cone 35°, 1.3 mm Ø
Typical applications
Hardness of elastomers and rubber etc.
Depth of indentation
0 - 2.5 mm
Test pressure
approx. 12.5 N
Measuring spring force
0.55 - 8.065 N
Working face
16 mm Ø = 2 cm2
Display range
0 - 100 Scale
Scale diameter
56 mm
Weight, net (gross)
approx. 300 g (500 g)
Dimensions
50 x 50 x 110 mm (L x W x H)
Kit Contents
The HP series is supplied as a complete kit including gauge and instruction manual in a foam-fitted carrying case.
More Information
Product Specifications
Work Face Radius
HPSA-R20 - 20mm HPSA-R35 - 35mm HPSA-R55 - 55mm
Indenter
Cone 35°, 1.3 mm Ø
Typical applications
Hardness of elastomers and rubber etc.
Depth of indentation
0 - 2.5 mm
Test pressure
approx. 12.5 N
Measuring spring force
0.55 - 8.065 N
Working face
16 mm Ø = 2 cm2
Display range
0 - 100 Scale
Scale diameter
56 mm
Weight, net (gross)
approx. 300 g (500 g)
Dimensions
50 x 50 x 110 mm (L x W x H)
Kit Contents
The HP series is supplied as a complete kit including gauge and instruction manual in a foam-fitted carrying case.
Product Features
Constant-pressure indicating system assures uniform test pressure eliminating false readings due to differences between operators. Supplied in a foam-fitted carrying case (Complete Kit) Operation is as easy as pressing the spring-loaded knurled aluminum shell down to the red line. Standard Memory Pointer to capture peak measurement.
