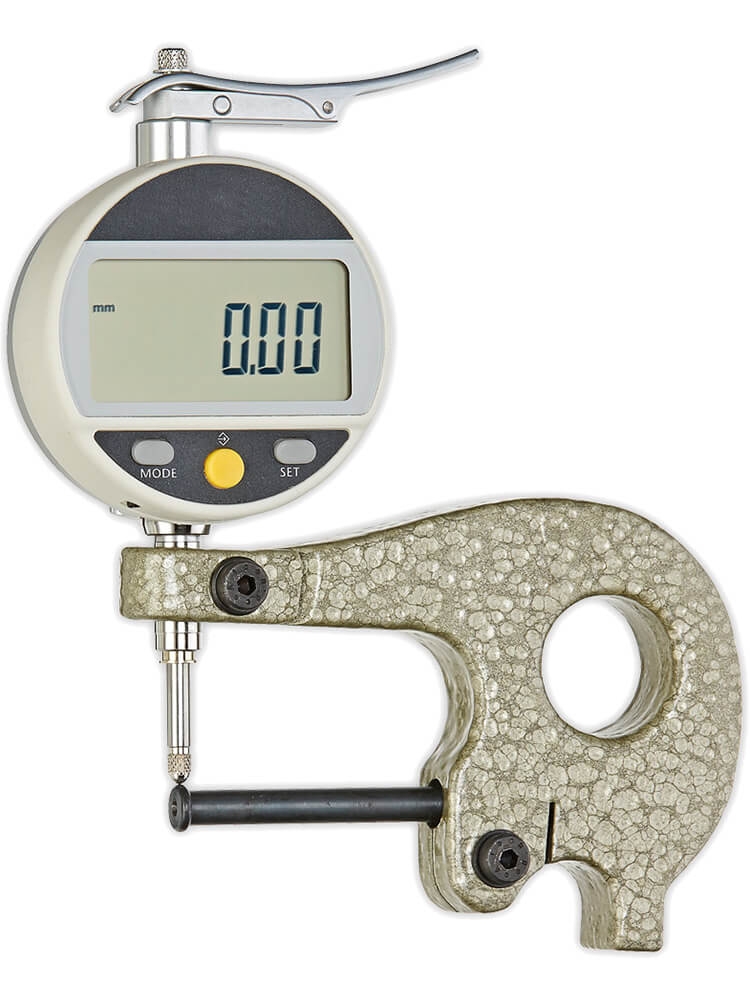

Checkline JD-50-W Digital Thickness Gauge for Measuring Tube Walls, Range 0-0.4", Depth of Jaw 50 mm
The Checkline JD-50-W Digital Thickness Gauge for Measuring Tube Walls, Range 0-0.4", Depth of Jaw 50 mm is equipped with a collar 1 mm diameter for measuring tube walls. This Thickness Gauge features RS 232 output for data collection.
The ground feeler is equipped with a collar ? 1 mm for measuring tubes still have a burr from parting Measuring by spring force RS 232 output for data collection Opening by lifting device (lever) - self closing thickness gauge
Resolution
0.01 mm / 0.0005 inch
Measuring range
0 - 10 mm / 0.4 inch
Depth of Jaw
50 mm
Measuring principle
Self closing
Display
LCD 6 digit, 8.5 mm high
Measuring system
Capazitiv (Sylvac)
Temperature range
10 - 45 °C
Battery
3 V Lithium, CR 2032
Data output
RS 232, galvanic isolation
Weight, net (gross)
300 g (350 g)
More Information
Product Specifications
Resolution
0.01 mm / 0.0005 inch
Measuring range
0 - 10 mm / 0.4 inch
Depth of Jaw
50 mm
Measuring principle
Self closing
Display
LCD 6 digit, 8.5 mm high
Measuring system
Capazitiv (Sylvac)
Temperature range
10 - 45 °C
Battery
3 V Lithium, CR 2032
Data output
RS 232, galvanic isolation
Weight, net (gross)
300 g (350 g)
Product Features
The ground feeler is equipped with a collar ? 1 mm for measuring tubes still have a burr from parting Measuring by spring force RS 232 output for data collection Opening by lifting device (lever) - self closing thickness gauge
