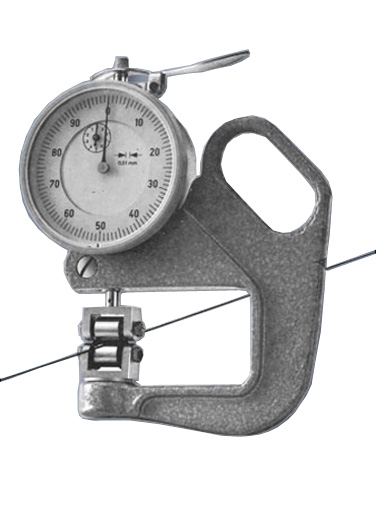

Checkline JZ-50R Wire Diameter Gauge, Range 0.001-0.200", Depth of Jaw 50 mm
The Checkline JZ-50R Wire Diameter Gauge, Range 0.001-0.200", Depth of Jaw 50 mm is the ideal tool for measuring wire diameters, tape and cloth/fabric thickness' - without stopping the manufacturing process.
Precision steel rollers for wire speeds up to 500 ft/min Lightweight and compact Available with or without roller flanges For measuring fabric cloth thickness, specify model without flanges Pocket-Sized
Measuring Range
0.001"-0.200" (0.01-5.00 mm)
Resolution
0.001" / 0.01 mm
Depth of Jaws
2" (50 mm)
Diameter of Scale
2.25" (58 mm)
Spring Force
1.0 Newton
More Information
Product Specifications
Measuring Range
0.001"-0.200" (0.01-5.00 mm)
Resolution
0.001" / 0.01 mm
Depth of Jaws
2" (50 mm)
Diameter of Scale
2.25" (58 mm)
Spring Force
1.0 Newton
Product Features
Precision steel rollers for wire speeds up to 500 ft/min Lightweight and compact Available with or without roller flanges For measuring fabric cloth thickness, specify model without flanges Pocket-Sized
