Checkline LMI Yarn Length Meter, Measures Inches

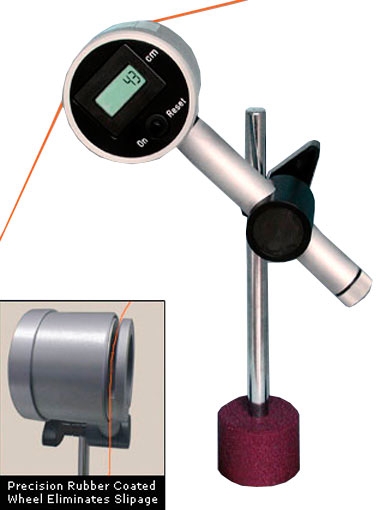

The Checkline LMI Yarn Length Meter, Measures Inches is a precision instrument that accurately measures the amount of yarn being fed from a textile machine feeder to a take-up device during one or more cycles or rotations of the machine cylinder. LMI / LMC Yarn Consumption Meter units are ideal for comparing yarn consumption from feed to feed and machine to machine on circular and flat bed knitting machines, and for other textile processes where yarn length is to be accurately measured.
Magnetic mounting base and universal tube clamp for quick and easy setup Precision, ball-bearing-mounted, low-inertia measuring wheel is rubber coated to eliminate yarn slippage Surface-mount electronics and a rugged, metal housing provide trouble-free operation in tough production environments Powered by two AAA batteries (included)
Range
0 –99,999 Inches (or cm)
Accuracy
+/- 0.2% of displayed value, +/- 1 digit
Resolution
1 Inch (or 1 cm)
Display
LCD, 8mm high
Measuring Wheel Access
4mm wide x 270
Operating Temperature
50 to 120 F (10 to 45 C)
Pre-settable Cycle Capacity
0 –99 (LMI-S or LMI-C models only)
Warranty
1 year

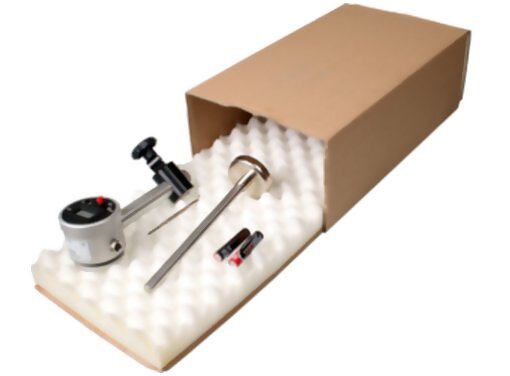

LMI / LMC Yarn Consumption Meter Certificate of Compliance of the order 2.1 1 magnetic base 2 batteries Instruction Manual Transport packaging
More Information
Product Specifications
Range
0 –99,999 Inches (or cm)
Accuracy
+/- 0.2% of displayed value, +/- 1 digit
Resolution
1 Inch (or 1 cm)
Display
LCD, 8mm high
Measuring Wheel Access
4mm wide x 270
Operating Temperature
50 to 120 F (10 to 45 C)
Pre-settable Cycle Capacity
0 –99 (LMI-S or LMI-C models only)
Warranty
1 year
Product Features
Magnetic mounting base and universal tube clamp for quick and easy setup Precision, ball-bearing-mounted, low-inertia measuring wheel is rubber coated to eliminate yarn slippage Surface-mount electronics and a rugged, metal housing provide trouble-free operation in tough production environments Powered by two AAA batteries (included)
