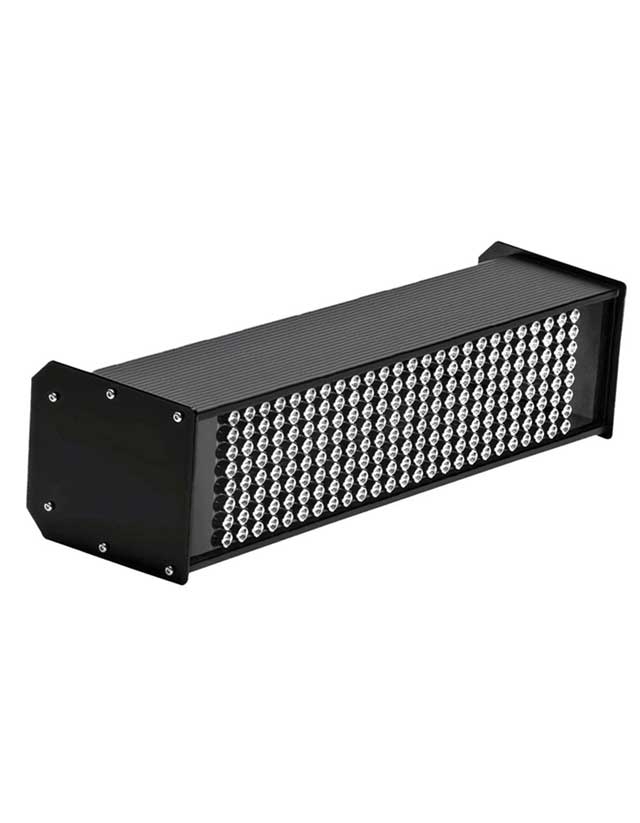

The Checkline LS-18-LED LED Fixed-Mount Linear Stroboscope 200 LEDs in 25 x 8 Array is designed for fixed-mounting on a wide variety of machinery and for various visual inspection tasks. It utilizes 200 high-performance LEDs arranged in a 25 x 8 array to produce a bright/sharp image with a uniform light distribution for web widths up to 20" (500mm) and wider. For wider coverage, two (2) or more Strobes can be combined in a Master/Slave arrangements using an interconnect cable to transfer the trigger signal from one to the other for perfect synchronization. The Checkline LS-18-LED uses the industries latest high performance LEDs to provide lifetime use, never requiring replacement. Their whisper-quiet operation and superb light intensity and uniformity make this linear stroboscope suitable for use in the toughest production environments and for a wide range of measurement, observation and inspection functions. Typical applications include: the printing, steel processing and label-printing industries.Adjustable brightness and image sharpness allows the user to optimize the strobe based on ambient lighting conditions, flash rate, image size and other operating parameters, allowing the user to find the best balance between light intensity and image sharpness for every application. The LS-18-LED is fitted with the ability to be controlled from two separate inputs with a toggle switch to select between the two. Flash rate can be controlled externally from a sensor or from a machine controller, or from a variety of optional control accessories.LS-FCM Flash Control Module: A simple and inexpensive unit for controlling ?ash frequency. You simply insert this small control unit into one of the two inputs on the reverse side of the strobe.
LED Fixed-Mount Linear Stroboscope 200 LEDs in 25 x 8 array
Extremely bright and uniform light distribution for web widths up to 20" (500mm) and wider.
Light intensity of 9000 Lux peak from 200 LEDs
Connections include two trigger inputs and one trigger output. Power can be connected in either of these three locations.
LEDs provide lifetime use and never require replacement.
Powered by 24 VDC, An optional universal AC-DC power supply is available.
For web widths greater than 20" (500mm), two or more strobes can be connected in parallel using the LS-CABLE-T. Each strobe would require it's own power supply.
24 VDC (+/-10%) / 40 W DIN 41524 5-pin standard plug universal power supply optionally available (LS-5-AC-WORLD)
External Trigger Input
3…30 V / max. 5 mA Ppotential-free optocoupler DIN 41524 5-pin standard plug Uout = Uin, max. 200 mA switchable trigger input
Trigger Output
or connection to 2nd Strobe (Slave)
Illumination Intensity
9,000 Lux (at 12"/30cm)
Light intensity/sharpness
Adjustable with turning knob
Illumination intensity single flash
1.2 Mega-Lux / 12" / 30cm
Illumination area
12 x >20" (30 x >50cm)
Flash color
5000...8.300 K, approx.
Material
Aluminum
Dimensions
230 x 130 x 112 mm / 9.1 x 5.1 x 4.4
Weight
4.63 lbs
Ambient temperature
0°...40°C (32°...114°F)
Storage temperature
-25°C...70°C (-10°...125°F)
Humidity
max. 95% not condensing
Certifications
CE conformity
Product Features
Supplied with 1 pc. LS-DIN, 9000 Lux Brightness
LED Fixed-Mount Linear Stroboscope 200 LEDs in 25 x 8 array
Extremely bright and uniform light distribution for web widths up to 20" (500mm) and wider.
Light intensity of 9000 Lux peak from 200 LEDs
Connections include two trigger inputs and one trigger output. Power can be connected in either of these three locations.
LEDs provide lifetime use and never require replacement.
Powered by 24 VDC, An optional universal AC-DC power supply is available.
For web widths greater than 20" (500mm), two or more strobes can be connected in parallel using the LS-CABLE-T. Each strobe would require it's own power supply.
