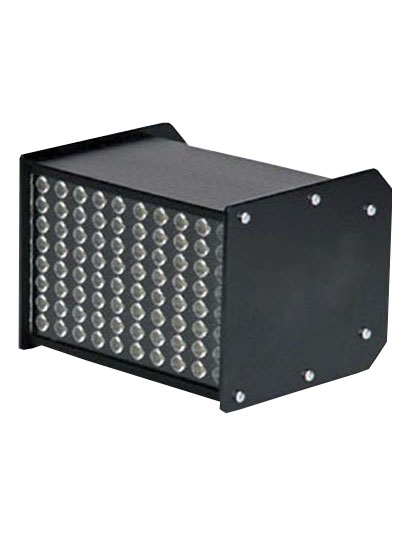

Checkline LS-5-LED LED Fixed-Mount Linear Stroboscope 80 LEDs in 10 x 8 Array
The Checkline LS-5-LED LED Fixed-Mount Linear Stroboscope 80 LEDs in 10 x 8 Array is an instrument that produces a bright/sharp image and uniform light distribution for web widths up to 12" (300mm) and wider. High Llight Output: 80 high-performance LEDs provide powerful light intensity. The large, homogenous illumination surface delivers superb results in diffi cult light conditions, making the LS-5-LED suitable for a wide range of measurement, observation and inspection functions, especially for demanding applications, such as those in the printing industry.
Light intensity of 6000 Lux peak LEDs provide lifetime use and never require replacement Extremely bright and uniform light distribution for web widths up to 12" (300mm) and wider Powered by 24 VDC, An optional universal AC-DC power supply is available Connections include two trigger inputs and one trigger output. Power can be connected in either of these three locations For web widths greater than 12" (300mm), two or more strobes can be connected in parallel
LEDs
200 in a 25 x 8 array
Frequency Range
0...120000 FPM (flashes per minute)
Power Required
24 VDC (+/-10%) / 40 W | DIN 41524 5-pin standard plug | universal power supply optionally available (LS-5-AC-WORLD)
External Trigger Input
3...30 V / max. 5 mA | Ppotential-free optocoupler | DIN 41524 5-pin standard plug | Uout = Uin, max. 200 mA | switchable trigger input
Trigger Output
for connection to 2nd Strobe (Slave)
Illumination Intensity
9,000 Lux / 12" / 30cm
Light intensity/sharpness
Adjustable with turning knob
Illumination intensity single flash
1.2 Mega-Lux / 12" / 30cm
Illumination area
12 x >20" (30 x >50cm)
Flash color
ca. 5000...8.300 K
Material
Aluminum
Dimensions
6.0" x 5.1" x 4.4" (150 x 130 x 112mm)
Weight
2.09 lbs
Ambient temperature
0°...40°C (32°...114°F)
Storage temperature
-25°C...70°C (-10°...125°F)
Humidity
max. 95% not condensing
Certifications
Certificate of CE conformity
Warranty
1 Year
More Information
Product Specifications
LEDs
200 in a 25 x 8 array
Frequency Range
0...120000 FPM (flashes per minute)
Power Required
24 VDC (+/-10%) / 40 W | DIN 41524 5-pin standard plug | universal power supply optionally available (LS-5-AC-WORLD)
External Trigger Input
3...30 V / max. 5 mA | Ppotential-free optocoupler | DIN 41524 5-pin standard plug | Uout = Uin, max. 200 mA | switchable trigger input
Trigger Output
for connection to 2nd Strobe (Slave)
Illumination Intensity
9,000 Lux / 12" / 30cm
Light intensity/sharpness
Adjustable with turning knob
Illumination intensity single flash
1.2 Mega-Lux / 12" / 30cm
Illumination area
12 x >20" (30 x >50cm)
Flash color
ca. 5000...8.300 K
Material
Aluminum
Dimensions
6.0" x 5.1" x 4.4" (150 x 130 x 112mm)
Weight
2.09 lbs
Ambient temperature
0°...40°C (32°...114°F)
Storage temperature
-25°C...70°C (-10°...125°F)
Humidity
max. 95% not condensing
Certifications
Certificate of CE conformity
Warranty
1 Year
Product Features
Light intensity of 6000 Lux peak LEDs provide lifetime use and never require replacement Extremely bright and uniform light distribution for web widths up to 12" (300mm) and wider Powered by 24 VDC, An optional universal AC-DC power supply is available Connections include two trigger inputs and one trigger output. Power can be connected in either of these three locations For web widths greater than 12" (300mm), two or more strobes can be connected in parallel
