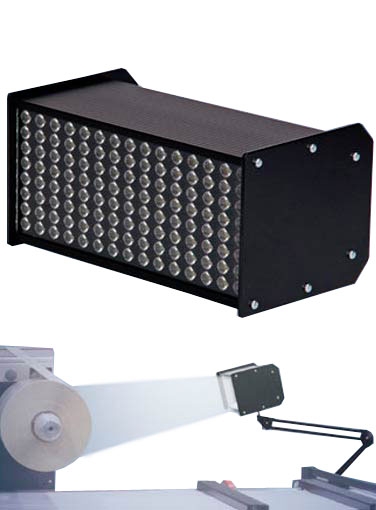

Checkline LS-9-LED Inspection Stroboscope 120 LEDs in 15 x 8 Array, 18" Wide-Body Housing, Requires 24V Power
The Checkline LS-9-LED Inspection Stroboscope 120 LEDs in 15 x 8 Array, 18" Wide-Body Housing, Requires 24V Power is a high-performance stationary LED-stroboscope with powerful light output and uniform light distribution over a large area for use on web-widths up to 500mm (20 inches) and wider. High light output. Due to the use of 120 of the industry's latest high-performance LEDs, the LS-9-LED offers a powerful light intensity. The large, homogenous illumination surface delivers superb results even at difficult light conditions, making the LS-9-LED suitable for a very wide range of measurement, observation and inspection functions. It is especially suitable for demanding applications, such as those in the printing industry.
LEDs provide lifetime use and never require replacement Extremely bright and uniform light distribution over an area of 300 x 500mm (12" x 20") Uses 120 of the newest generation LEDs in a 15 x 8 array providing 7500 Lux, peak For web widths > 500 mm (20"), Two (2) or more strobes can be connected in parallel Requires 24V DC Power (Not Included), An optional power adapter is available Connection include two (2) trigger inputs and 1 trigger output. Power can be connected in either of these 3 locations Adjustable brightness and image sharpness permits operator to optimize strobe for each application
Frequency Range
0...120000 FPM (flashes per minute)
Power Required
18 - 28 V DC / 0.6A (19.2 Watts) Universal AC power supply sold separately, pn LS-AC-WORLD
External Trigger Input
3...30 V / max. 5 mA Ppotential-free optocoupler DIN 41524 5-pin standard plug Uout = Uin, max. 200 mA switchable trigger input
Trigger Output
for connection to 2nd Strobe (Slave)
Illumination Intensity
7500 Lux, max (30 cm area at 12"@3°)
Light intensity/sharpness
adjustable with turning knob
Illumination intensity single flash
ca. 1 Mega-Lux/30cm / 12"
Illumination area
30x50 cm/12 x 20 inches
Flash color
ca. 5000...8.300 K
Material
Aluminum
Dimensions
230x130x112 mm / 9,1x5,1x4,4
Weight
1.400 g
Ambient temperature
0°...40°C (32°...114°F)
Storage temperature
-25°C...70°C (-10°...125°F)
Humidity
max. 95% not condensing
Certifications
Certificate of CE conformity
Warranty
1 Year
More Information
Product Specifications
Frequency Range
0...120000 FPM (flashes per minute)
Power Required
18 - 28 V DC / 0.6A (19.2 Watts) Universal AC power supply sold separately, pn LS-AC-WORLD
External Trigger Input
3...30 V / max. 5 mA Ppotential-free optocoupler DIN 41524 5-pin standard plug Uout = Uin, max. 200 mA switchable trigger input
Trigger Output
for connection to 2nd Strobe (Slave)
Illumination Intensity
7500 Lux, max (30 cm area at 12"@3°)
Light intensity/sharpness
adjustable with turning knob
Illumination intensity single flash
ca. 1 Mega-Lux/30cm / 12"
Illumination area
30x50 cm/12 x 20 inches
Flash color
ca. 5000...8.300 K
Material
Aluminum
Dimensions
230x130x112 mm / 9,1x5,1x4,4
Weight
1.400 g
Ambient temperature
0°...40°C (32°...114°F)
Storage temperature
-25°C...70°C (-10°...125°F)
Humidity
max. 95% not condensing
Certifications
Certificate of CE conformity
Warranty
1 Year
Product Features
LEDs provide lifetime use and never require replacement Extremely bright and uniform light distribution over an area of 300 x 500mm (12" x 20") Uses 120 of the newest generation LEDs in a 15 x 8 array providing 7500 Lux, peak For web widths > 500 mm (20"), Two (2) or more strobes can be connected in parallel Requires 24V DC Power (Not Included), An optional power adapter is available Connection include two (2) trigger inputs and 1 trigger output. Power can be connected in either of these 3 locations Adjustable brightness and image sharpness permits operator to optimize strobe for each application
