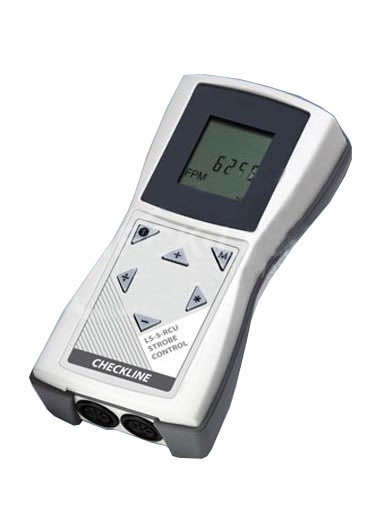

Checkline LS-SCU Remote Control Unit and Connection Cable
The Checkline LS-SCU Remote Control Unit and Connection Cable is a precision instrument that provides and easy-to-use control center for any stroboscope whether it is from Electromatic or other manufacturers. Use it to create a trigger signal or to influence a signal generated externally. The multiplicity of control parameters make it easy for you to carry out the inspection or measurement tasks required of you.
Remote Control Unit for LS-5-12000 Stroboscope Warranty: One Year
Frequency
30.0 - 999.9 FPM ± 0.1 / 1,000 - 600,000 FPM ±1 ? 0.5 - 999.9 Hz ± 0.1 / 1,000 - 10,000 HZ ± 1
Pulse Width
absolute (± 1) and relative (± 1°) adjustable
Phase Shift
0 - 359° ±1°
Delay
0.0 - 2,000.0 ms ± 0.1 ms
Divider
1 - 255 ± 1
Power Supply
10 - 32 V DC, with reverse polarity protection
Current intake
<50 mA
Low Level
< 1 V
Level
3 - 32 V, NPN + PNP
Minimum pulse Length
50 µs
Reverse voltage protection
Yes
Trigger Output Principle
Short circuit and overvoltage proof transistor output to the optocoupler control, non-isolated
Pulse Length
adjustable
Housing Material
ABS / EPDM
Dimensions
162x82x40 mm / 6.4x3.3x1.6 inch
Weight
230 g
Ambient Temperature
0 - 50 °C (32 - 122 °F)
More Information
Product Specifications
Frequency
30.0 - 999.9 FPM ± 0.1 / 1,000 - 600,000 FPM ±1 ? 0.5 - 999.9 Hz ± 0.1 / 1,000 - 10,000 HZ ± 1
Pulse Width
absolute (± 1) and relative (± 1°) adjustable
Phase Shift
0 - 359° ±1°
Delay
0.0 - 2,000.0 ms ± 0.1 ms
Divider
1 - 255 ± 1
Power Supply
10 - 32 V DC, with reverse polarity protection
Current intake
<50 mA
Low Level
< 1 V
Level
3 - 32 V, NPN + PNP
Minimum pulse Length
50 µs
Reverse voltage protection
Yes
Trigger Output Principle
Short circuit and overvoltage proof transistor output to the optocoupler control, non-isolated
Pulse Length
adjustable
Housing Material
ABS / EPDM
Dimensions
162x82x40 mm / 6.4x3.3x1.6 inch
Weight
230 g
Ambient Temperature
0 - 50 °C (32 - 122 °F)
