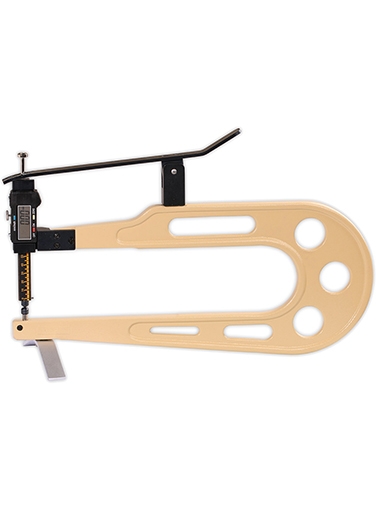

Checkline MDM-830-1-A Digital Thickness Gauge, Range 2", Jaw Depth 300 mm, Feeler A (6 mm) for Rigid Leather, Glass, Sheet Metal
The Checkline MDM-830-1-A Digital Thickness Gauge, Range 2", Jaw Depth 300 mm, Feeler A (6 mm) for Rigid Leather, Glass, Sheet Metal is ideal to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. Self closing thickness gauge with high accuracy and resolution.
Thickness gauge with RS 232 output for data collection Measuring by spring force Opening by lifting device (lever) - self closing LCD display with user selectable units (mm or inch) Zero setting by pushing a button Calibration certificate included
Resolution
0.0005 in (0.01 mm)
Measuring range
2 in (50 mm)
Depth of jaw
11.81 in (300 mm)
Measuring pressure
2 N
Measuring principle
Self closing
Feeler shape
A/B/C/D/E
Display
LCD 7 mm high
Measuring system
Sylvac
Weight, net (gross)
1000 g (1050 g)
More Information
Product Specifications
Resolution
0.0005 in (0.01 mm)
Measuring range
2 in (50 mm)
Depth of jaw
11.81 in (300 mm)
Measuring pressure
2 N
Measuring principle
Self closing
Feeler shape
A/B/C/D/E
Display
LCD 7 mm high
Measuring system
Sylvac
Weight, net (gross)
1000 g (1050 g)
Product Features
Thickness gauge with RS 232 output for data collection Measuring by spring force Opening by lifting device (lever) - self closing LCD display with user selectable units (mm or inch) Zero setting by pushing a button Calibration certificate included
