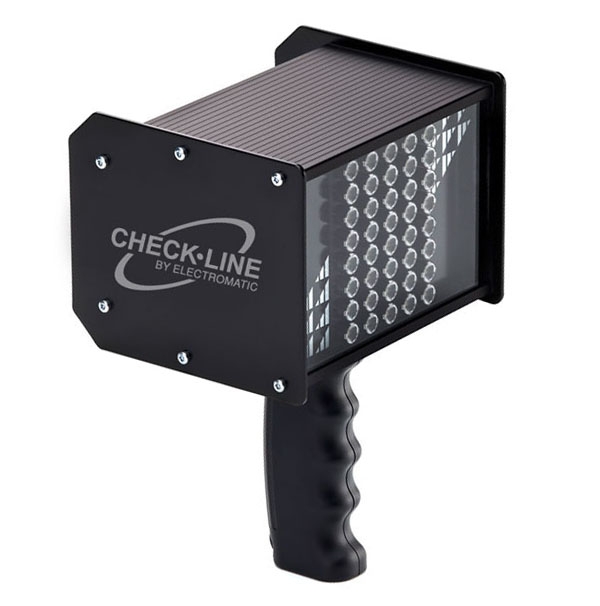

Checkline QB-LED Battery Powered LED Stroboscope Peak Brightness of 5,000
The Checkline QB-LED Battery Powered LED Stroboscope Peak Brightness of 5,000 is a hand-held, battery-powered stroboscope featuring forty (40) extremely bright LEDs for the highest light output in its class. Designed for machinery observation, visual inspection and motion analysis, its robust design is suitable for use in the toughest industrial environments. The Checkline QB-LED features a robust aluminum housing fitted with forty long-life, high performance LEDs providing a peak brightness of 1750 Lux and convenient adjustment of flash duration to easily select the optimal balance of brightness and image sharpness. A built-in Lithium Ion battery provides up to seven hours of continuous use on a single charge. It is supplied with a universal battery charger (100-240VAC) with USA, Euro and UK plug adapters.
40 High Power LEDs produce 5000 Lux Peak Brightness Flash range of 30 - 300,000 fpm (0.5-5000 Hz) with user-selected units of Hz or FPM (Flashes Per Minute) Selectable units of "FPM, "Hz" or "1/MIN" "Slow Motion" Mode allows user to offset the flash rate to put the "frozen" image into "slow-motion" "PRO Mode" provides additonal functions including Multiplier, Delay and Memory (5 User-set Values) Additional features include "Phase Shift" and Internal/External Trigger Built-In Litium-Ion battery provides up to seven hours of continuous operation on a single charge. Battery status is shown on LCD display Adjustable flash duration allows for optimal tuning of brightness and image sharpness for every application Traceable Calibration Certificate included Supplied with universal AC battery charger. Can also be used to continuously power the QB-LED for fixed-mounted use Threaded mounting holes for fixed mount applications Rugged, lightweight aluminum housing with an ergonomic handle, convenient operator controls and backlit LCD display CE Certified with 1-Year Warranty
Number of LEDs
40
Flash Rate
30 - 300,000 FPM (0.5 - 5000Hz)
Flash Duration
Adjustable (1 usec up to 2000 usec)
Accuracy
± 0.02% (± 1-digit/±0.025usec)
Resolution
± 0.1 FPM (30 - 999) ± 1 FPM (1000 - 9999) ± 10 FPM (10,000-300,000)
Brightness
5000 Lux @ 6000 FPM / 30cm (12 inch) - and 3° Sharpness
Display
LCD, multiple lines
Certification
CE (as per EU norms)
Flash Color
Approx. 5,000 - 8000 K
Power
Built-In Lithium-Ion rechargeable battery
Housing Material
Aluminum
Dimensions
150 x 130 x 112 mm / 6 x 5.1 x 4.4 inch
Weight
1 Kg (2.2 Lbs)
Temperature Range
0° - 40° C / 32° - 104° F
Battery Life
approx 7 hours at (@875 Lux) approx 4 hours at 2000 Lux
Housing Protection
IP30
Mounting Holes
1x 1/4"-20UNC (in center) 2x M5 Threaded Holes (60 mm c
Trigger Input Signal
3...30 V / max. 5 mA (Isolated optocoupler) DIN 41524 5-pin standard plug Uout = 24V DC, 60 mA switchable trigger input
Trigger Output
not available
Warranty
1 Year
Default Settings
FREQUENCY=1000 FPM, BRIGHT=1°/166usec, PHASE=0, TRIGGER=INT, Display Units=FPM, Miltiplier=x1, Bright Units=deg, Delay=0msec, Divider=1, Slow=0, Trigger=0(rising)

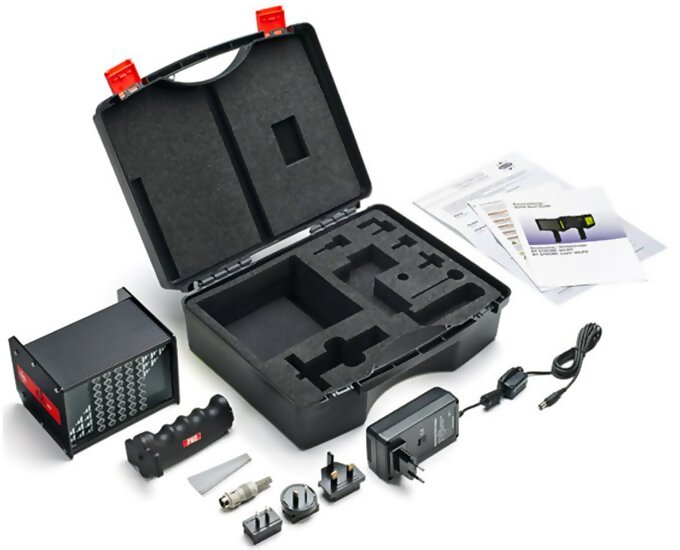

QB-LED Battery Powered LED Stroboscope Removable handle Universal AC adapter with USA, EURO and UK plugs DIN connector when using external trigger signal from sensor Traceable calibration certificate Carrying Case
More Information
Product Specifications
Number of LEDs
40
Flash Rate
30 - 300,000 FPM (0.5 - 5000Hz)
Flash Duration
Adjustable (1 usec up to 2000 usec)
Accuracy
± 0.02% (± 1-digit/±0.025usec)
Resolution
± 0.1 FPM (30 - 999) ± 1 FPM (1000 - 9999) ± 10 FPM (10,000-300,000)
Brightness
5000 Lux @ 6000 FPM / 30cm (12 inch) - and 3° Sharpness
Display
LCD, multiple lines
Certification
CE (as per EU norms)
Flash Color
Approx. 5,000 - 8000 K
Power
Built-In Lithium-Ion rechargeable battery
Housing Material
Aluminum
Dimensions
150 x 130 x 112 mm / 6 x 5.1 x 4.4 inch
Weight
1 Kg (2.2 Lbs)
Temperature Range
0° - 40° C / 32° - 104° F
Battery Life
approx 7 hours at (@875 Lux) approx 4 hours at 2000 Lux
Housing Protection
IP30
Mounting Holes
1x 1/4"-20UNC (in center) 2x M5 Threaded Holes (60 mm c
Trigger Input Signal
3...30 V / max. 5 mA (Isolated optocoupler) DIN 41524 5-pin standard plug Uout = 24V DC, 60 mA switchable trigger input
Trigger Output
not available
Warranty
1 Year
Default Settings
FREQUENCY=1000 FPM, BRIGHT=1°/166usec, PHASE=0, TRIGGER=INT, Display Units=FPM, Miltiplier=x1, Bright Units=deg, Delay=0msec, Divider=1, Slow=0, Trigger=0(rising)
Product Features
40 High Power LEDs produce 5000 Lux Peak Brightness Flash range of 30 - 300,000 fpm (0.5-5000 Hz) with user-selected units of Hz or FPM (Flashes Per Minute) Selectable units of "FPM, "Hz" or "1/MIN" "Slow Motion" Mode allows user to offset the flash rate to put the "frozen" image into "slow-motion" "PRO Mode" provides additonal functions including Multiplier, Delay and Memory (5 User-set Values) Additional features include "Phase Shift" and Internal/External Trigger Built-In Litium-Ion battery provides up to seven hours of continuous operation on a single charge. Battery status is shown on LCD display Adjustable flash duration allows for optimal tuning of brightness and image sharpness for every application Traceable Calibration Certificate included Supplied with universal AC battery charger. Can also be used to continuously power the QB-LED for fixed-mounted use Threaded mounting holes for fixed mount applications Rugged, lightweight aluminum housing with an ergonomic handle, convenient operator controls and backlit LCD display CE Certified with 1-Year Warranty
