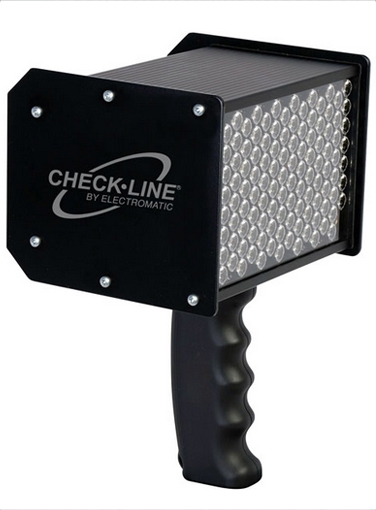

Checkline QBS-LED Portable, Battery Powered LED Stroboscope Kit
The Checkline QBS-LED Portable, Battery Powered LED Stroboscope Kit is a hand-held, battery-powered stroboscope featuring 118 extremely bright LEDs for the highest light output in its class. Designed for machinery observation, visual inspection and motion analysis, its robust design is suitable for use in the toughest industrial environments. The QBS-LED features a robust aluminum housing fitted with forty long-life, high performance LEDs providing a peak brightness of 10,000 Lux and convenient adjustment of flash duration to easily select the optimal balance of brightness and image sharpness. A built-in Lithium Ion battery provides up to seven hours of continuous use on a single charge. It is supplied with a universal battery charger (100-240VAC) with USA, Euro and UK plug adapters.
118 High Power LEDs produce 10000 Lux Peak Brightness Flash range of 30 - 300,000 fpm (0.5-5000 Hz) with user-selected units of Hz or FPM (Flashes Per Minute) Selectable units of "FPM, "Hz" or "1/MIN" Built-In Laser Light Source provides a Non-Contact "Tachometer Mode" when used in combination with reflective tape "Auto-Synch" feature uses the Laser Tach Mode to instantly "freeze" rotating target without any adjustment "Slow Motion" Mode allows user to offset the flash rate to put the "frozen" image into "slow-motion" (External Trigger Mode only) "PRO Mode" provides additonal functions including Multiplier, Delay and Memory (5 User-set Values) Built-In Litium-Ion battery provides up to five hours of continuous operation on a single charge. Battery status is shown on LCD display Adjustable flash duration allows for optimal tuning of brightness and image sharpness for every application Additional features include "Phase Shift" and Internal/External Trigger Traceable Calibration Certificate provided Threaded mounting holes for fixed mount applications Rugged, lightweight aluminum housing with an ergonomic handle, convenient operator controls and backlit LCD display Supplied with universal AC battery charger. Can also be used to continuously power the QBS-LED for fixed-mounted use CE Certified with 1-Year Warranty
Number of LEDs
118
Flash Rate
30 - 300,000 FPM (0.5 - 5000Hz)
Accuracy
± 0.02% (± 1-digit/±0.025usec)
Flash Duration
Adjustable (1 usec up to 2000 usec)
Resolution
± 0.1 FPM (30 - 999) | ± 1 FPM (1000 - 9999) | ± 10 FPM (10,000-300,000)
Brightness
approx. 8,000 Lux @ 1° Sharpness & 300 mm (12 inch) distance
Display
LCD, multiple lines
Flash Color
Approx. 5,000 - 8000 K
Power
Built-In Lithium-Ion rechargeable battery
Housing Material
Aluminum
Dimensions
150 x 130 x 112 mm / 6 x 5.1 x 4.4 inch
Weight
1.15 Kg (2.5 Lbs)
Temperature Range
0° - 40° C / 32° - 104° F
Battery Life
approx. 2
Default Settings
FREQUENCY=1000 FPM, BRIGHT=1°/166usec, PHASE=0, TRIGGER=INT, Display Units=FPM, Miltiplier=x1, Bright Units=deg, Delay=0msec, Divider=1, Slow=0, Trigger=0(rising)
Housing Protection
IP30
Mounting Holes
1x 1/4"-20UNC (in center) | 2x M5 Threaded Holes (60 mm c
Trigger Input Signal
3...30 V / max. 5 mA (Isolated optocoupler) | DIN 41524 5-pin standard plug | Uout = 24V DC, 60 mA | switchable trigger input
Trigger Output
not available
Certification
CE (as per EU norms)

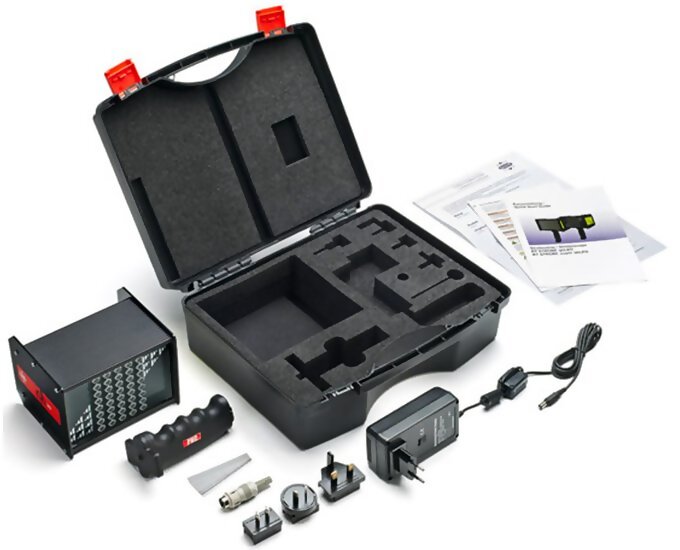

QBS-LED Portable, Battery Powered LED Stroboscope Removable handle Universal AC adapter with USA, EURO and UK plugs DIN connector (for use when externally triggering from sensor) Reflective tape Traceable calibration certificate Instruction Manual Carrying Case
More Information
Product Specifications
Number of LEDs
118
Flash Rate
30 - 300,000 FPM (0.5 - 5000Hz)
Accuracy
± 0.02% (± 1-digit/±0.025usec)
Flash Duration
Adjustable (1 usec up to 2000 usec)
Resolution
± 0.1 FPM (30 - 999) | ± 1 FPM (1000 - 9999) | ± 10 FPM (10,000-300,000)
Brightness
approx. 8,000 Lux @ 1° Sharpness & 300 mm (12 inch) distance
Display
LCD, multiple lines
Flash Color
Approx. 5,000 - 8000 K
Power
Built-In Lithium-Ion rechargeable battery
Housing Material
Aluminum
Dimensions
150 x 130 x 112 mm / 6 x 5.1 x 4.4 inch
Weight
1.15 Kg (2.5 Lbs)
Temperature Range
0° - 40° C / 32° - 104° F
Battery Life
approx. 2
Default Settings
FREQUENCY=1000 FPM, BRIGHT=1°/166usec, PHASE=0, TRIGGER=INT, Display Units=FPM, Miltiplier=x1, Bright Units=deg, Delay=0msec, Divider=1, Slow=0, Trigger=0(rising)
Housing Protection
IP30
Mounting Holes
1x 1/4"-20UNC (in center) | 2x M5 Threaded Holes (60 mm c
Trigger Input Signal
3...30 V / max. 5 mA (Isolated optocoupler) | DIN 41524 5-pin standard plug | Uout = 24V DC, 60 mA | switchable trigger input
Trigger Output
not available
Certification
CE (as per EU norms)
