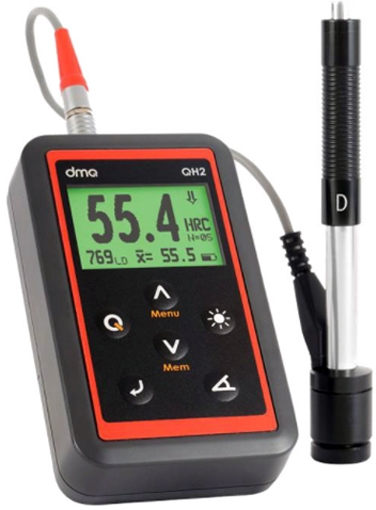

Checkline QH2 Portable Leeb Hardness Tester for Steel
The Checkline QH2 Portable Leeb Hardness Tester for Steel is used to conduct quick and precise measurements on all types of parts and structures made out of steel, stainless steel and alloy tool steel with immediate conversions to the most common hardness units.
Accuracy of 4 HLD Conversions to HB, HRC,HRB, HV, HS Measuring range of up to 647 HB and 68HRC Measures in all directions Large graphic LCD with LED backlight Transfer data to a PC via USB ( QH2 DLS ) High impact ABS enclosure 5 Year Warranty
Measuring Principle
Leeb rebound method
Impact device
Universal type D
Impact directions
All angles
Accuracy
± 4 HLD
Measuring range
150 ~ 990 HLD
Alarms
Minimum and maximum
Power supply
2 AA 1.5v batteries
Battery lifetime
100 hours
Operating temperature
0°C to +50°C
Dimensions
69 x 115 x 28 mm
Weight
200g with batteries

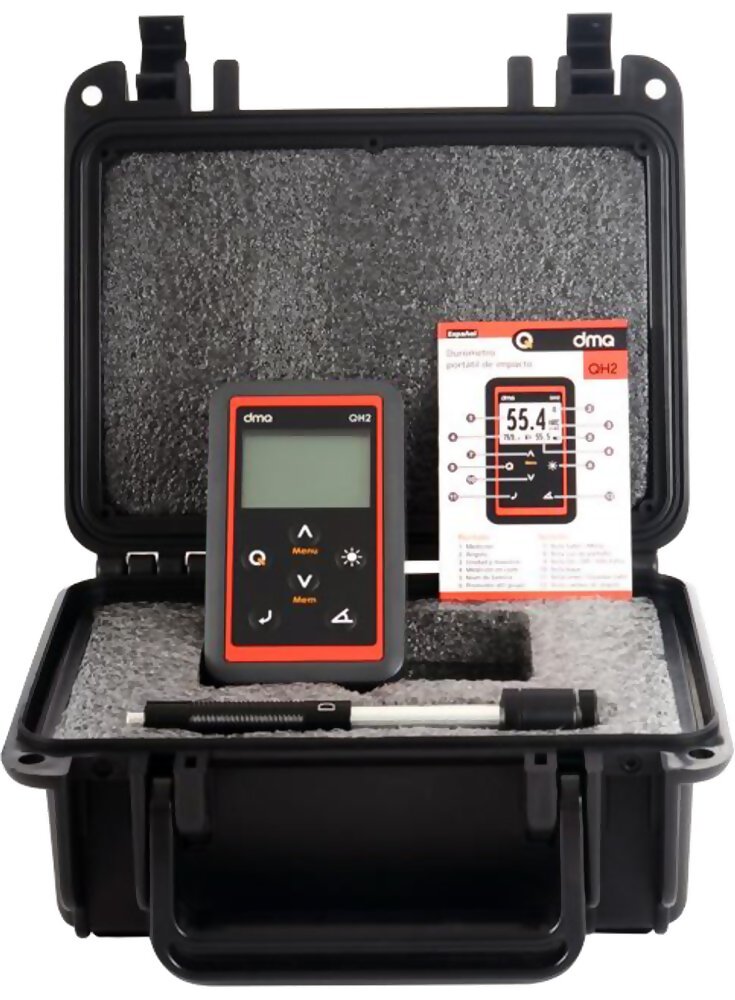

QH2 Portable Leeb Hardness Tester for Steel Certificate of conformity Carrying Case
More Information
Product Specifications
Measuring Principle
Leeb rebound method
Impact device
Universal type D
Impact directions
All angles
Accuracy
± 4 HLD
Measuring range
150 ~ 990 HLD
Alarms
Minimum and maximum
Power supply
2 AA 1.5v batteries
Battery lifetime
100 hours
Operating temperature
0°C to +50°C
Dimensions
69 x 115 x 28 mm
Weight
200g with batteries
Product Features
Accuracy of 4 HLD Conversions to HB, HRC,HRB, HV, HS Measuring range of up to 647 HB and 68HRC Measures in all directions Large graphic LCD with LED backlight Transfer data to a PC via USB ( QH2 DLS ) High impact ABS enclosure 5 Year Warranty
