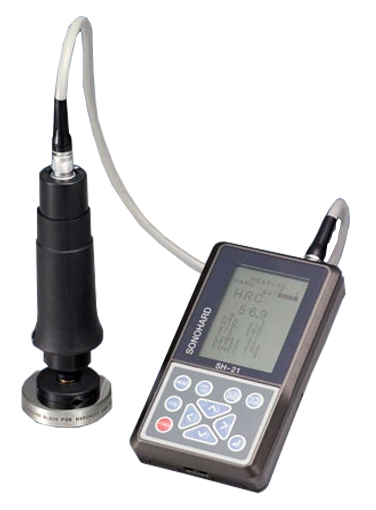

Checkline SH-21A-E2 SH-21 Metal Hardness Tester with 2Kg Load
The Checkline SH-21A-E2 SH-21 Metal Hardness Tester with 2Kg Load is designed for precise measurement of hardness in difficult to reach areas of compact parts, metal casts, gears, crank shafts, component parts and more. It is ideal for inspection and maintenance of large-scale structures, vehicles, ships, steel towers, bridges, aircraft.
Fast action, measures hardness in seconds. Practically undetectable measurement technique leaves indentations of 0.1mm2allowing use on finished products. Displays hardness in HV (Vickers), HRC (Rockwell), HS (Shore) and HB (Brinnel) units. Measurement can be converted to tensile strength, N/mm2 Readings not affected by surface underneath test sample. 2000 Reading data memory can be transferred to PC.
Measuring Indentor
Diamond indenter for Micro-Vickers (facing-to- surface angle of 136°)
Testing Force
SH-21-E2
Measuring Range
Rockwell hardness
Resolution
1HV, 0.1HRC, 0.1HS, 1HB, 1N/mm2 (tensile strength)
Repeatability
HRC
Applicable test materials
Steel is the principle material, other metallic materials may also be measured by calibrating against a standard hardness test block.
Display
Digital display (LCD, 4 digits) with EL backlight
Temp limit
0-50 C Ambient
Power
AC adapter(100 - 240V) or lithium ion rechargeable battery
Battery Life
5 hours using backlight, 8 hours without backlight
Dimensions
Display
Carrying case dimensions
400(W) x 220(D) x 140(H) mm
Output
RS-232C output used for data transmission or printing
Frequency
Motorized / manual switchover type approx 69-71kHz Manual type (optional) approx 38-40kHz
Conversion
HV, HRC, HS, HB, N/mm2 according to JIS B 7731, ASTM E 140, DIN 50150
Warranty
1 Year

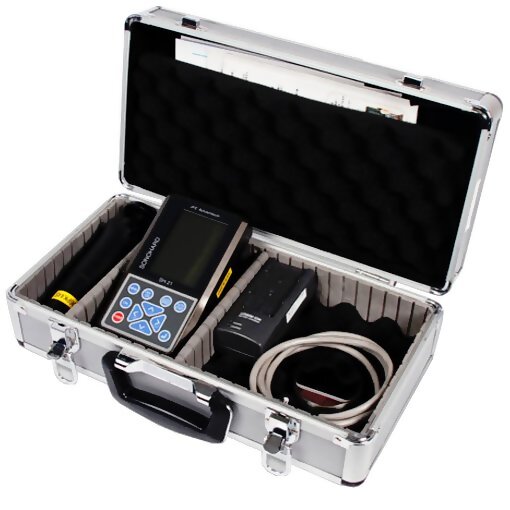

SH-21 Metal Hardness Tester - Rockwell HRC Probe Hardness test block (approx 55HRC) 1.5m probe cable 100-240V AC Adapter Battery charger 1 Li-On battery Carrying Case
More Information
Product Specifications
Measuring Indentor
Diamond indenter for Micro-Vickers (facing-to- surface angle of 136°)
Testing Force
SH-21-E2
Measuring Range
Rockwell hardness
Resolution
1HV, 0.1HRC, 0.1HS, 1HB, 1N/mm2 (tensile strength)
Repeatability
HRC
Applicable test materials
Steel is the principle material, other metallic materials may also be measured by calibrating against a standard hardness test block.
Display
Digital display (LCD, 4 digits) with EL backlight
Temp limit
0-50 C Ambient
Power
AC adapter(100 - 240V) or lithium ion rechargeable battery
Battery Life
5 hours using backlight, 8 hours without backlight
Dimensions
Display
Carrying case dimensions
400(W) x 220(D) x 140(H) mm
Output
RS-232C output used for data transmission or printing
Frequency
Motorized / manual switchover type approx 69-71kHz Manual type (optional) approx 38-40kHz
Conversion
HV, HRC, HS, HB, N/mm2 according to JIS B 7731, ASTM E 140, DIN 50150
Warranty
1 Year
Product Features
Fast action, measures hardness in seconds. Practically undetectable measurement technique leaves indentations of 0.1mm2allowing use on finished products. Displays hardness in HV (Vickers), HRC (Rockwell), HS (Shore) and HB (Brinnel) units. Measurement can be converted to tensile strength, N/mm2 Readings not affected by surface underneath test sample. 2000 Reading data memory can be transferred to PC.
