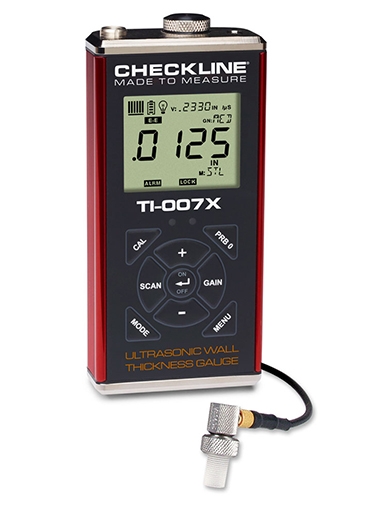

Checkline TI-007X Precision Ultrasonic Wall Thickness Gauge
The Checkline TI-007X Precision Ultrasonic Wall Thickness Gauge is designed for high-resolution measurements on thin-wall metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.
Includes NIST Traceable Calibration Certificate Includes NIST Traceable Calibration Certificate Large, backlit LCD display retains last reading Selectable units of inch or mm Selectable Backlight ON/OFF/AUTO Optional serial RS-232 or Bluetooth output IP 65 Rated for protection even in the toughest field conditions Operates on two (2) AA Batteries - 45 hours continuous operation Powered by: 120MHz FPGA timing & 100 volt spike pulser Measure Modes: Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS) Additional Modes Include Differential (from user-entered "nominal value"), Alarm (user-set Hi/Low Limits) and Velocity Mode LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero and units Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity USB Data output of single values for transfer to data collection devices (no internal memory) Adjustable GAIN (AGC) in 5 steps to fine tune the gauge for use on challenging materials or applications Can be used with both Single Element Delay Line and contact transducers (5 to 20MHz) CE-Certified Warranty: Gauge: 5 Years Probes: 90 Days Made in the USA
Total Measuring Range | (Steel)
0.006 - 36.000 inches | 0.15 - 924 mm | (depends on material and transducer/probe type)
Range with Standard Probe
0.0060-1.0000" (0.15-25.40 mm) with standard delay line transducer in steel
Resolution
0.0001" (0.001 mm) . 0.001" (0.01 mm), user-selected units and resolution
Measuring Modes
Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS), Differential, Alarm, Scan and Velocity (VX)
Gain
Automatic time dependent gain (TDG) with manual override
Velocity Range
0.0120 to .7300 in/?s (305 to 18,542 m/sec)
Probe (Standard)
1/4" diameter, 15 MHz delay line transducer with cable (p/n T-402-5507)
Probes (optional)
Various Single Element Delay Line and Contact Transducers (5 to 20MHz)
Cable
4 ft. (1.2 m) with Microdot/Lemo00 connector.
Display
Multi-function 7 segment 4.5 digit liquid crystal display with Back-light
Display Backlight
Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
Display Update Rate
10 Hz (10 updates/sec)
Output
USB single value only (no internal memory) TI-007DLX for a model with build-in memory for 40,000 values USB output
Output Optional
RS-232 and Bluetooth
Operating Temperature
-22 to 167F (-30 to 75C)
Battery Type
2x AA 1.5V alkaline, 1.2V NiCad, or 1.5V lithium AA cells (rechargeable batteries can be used)
Battery Life
Typically operates for 35 hours on alkaline and 18 hours on NiCad
Weight
11 ounces (308 grams)
Dimensions
2.5 x 5.17 x 1.25" | (64 x 131 x 32 mm)
Housing
Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
Housing Protection
IP65
Certifications
NIST Traceable and MIL-STD-45662A
Keypad
Sealed membrane that is resistant to both water and petroleum products Seven or eight tactile-feedback keys
Pulse Repetition Frequency (PRF)
200 Hz (200 pulses/sec)
To Lock Settings
With gauge powered off, press and hold the "+" key while powering on the gauge | The LOCK icon will be illuminated on the Display
To unLock Settings
With gauge powered off, press and hold the "-" key while powering on the gauge | The LOCK icon will turn off
Warranty
Gauge

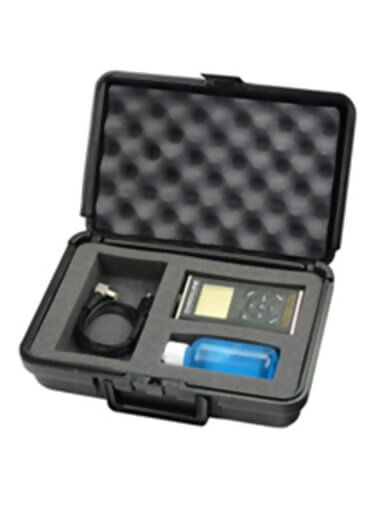

Checkline TI-007X Precision Ultrasonic Wall Thickness Gauge Probe 4 oz. bottle of coupling fluid USB-C Data transfer cable 2 AA batteries NIST Traceable Calibration Certificate Instruction Manual Carrying Case
More Information
Product Specifications
Total Measuring Range | (Steel)
0.006 - 36.000 inches | 0.15 - 924 mm | (depends on material and transducer/probe type)
Range with Standard Probe
0.0060-1.0000" (0.15-25.40 mm) with standard delay line transducer in steel
Resolution
0.0001" (0.001 mm) . 0.001" (0.01 mm), user-selected units and resolution
Measuring Modes
Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS), Differential, Alarm, Scan and Velocity (VX)
Gain
Automatic time dependent gain (TDG) with manual override
Velocity Range
0.0120 to .7300 in/?s (305 to 18,542 m/sec)
Probe (Standard)
1/4" diameter, 15 MHz delay line transducer with cable (p/n T-402-5507)
Probes (optional)
Various Single Element Delay Line and Contact Transducers (5 to 20MHz)
Cable
4 ft. (1.2 m) with Microdot/Lemo00 connector.
Display
Multi-function 7 segment 4.5 digit liquid crystal display with Back-light
Display Backlight
Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
Display Update Rate
10 Hz (10 updates/sec)
Output
USB single value only (no internal memory) TI-007DLX for a model with build-in memory for 40,000 values USB output
Output Optional
RS-232 and Bluetooth
Operating Temperature
-22 to 167F (-30 to 75C)
Battery Type
2x AA 1.5V alkaline, 1.2V NiCad, or 1.5V lithium AA cells (rechargeable batteries can be used)
Battery Life
Typically operates for 35 hours on alkaline and 18 hours on NiCad
Weight
11 ounces (308 grams)
Dimensions
2.5 x 5.17 x 1.25" | (64 x 131 x 32 mm)
Housing
Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
Housing Protection
IP65
Certifications
NIST Traceable and MIL-STD-45662A
Keypad
Sealed membrane that is resistant to both water and petroleum products Seven or eight tactile-feedback keys
Pulse Repetition Frequency (PRF)
200 Hz (200 pulses/sec)
To Lock Settings
With gauge powered off, press and hold the "+" key while powering on the gauge | The LOCK icon will be illuminated on the Display
To unLock Settings
With gauge powered off, press and hold the "-" key while powering on the gauge | The LOCK icon will turn off
Warranty
Gauge
Product Features
Includes NIST Traceable Calibration Certificate Includes NIST Traceable Calibration Certificate Large, backlit LCD display retains last reading Selectable units of inch or mm Selectable Backlight ON/OFF/AUTO Optional serial RS-232 or Bluetooth output IP 65 Rated for protection even in the toughest field conditions Operates on two (2) AA Batteries - 45 hours continuous operation Powered by: 120MHz FPGA timing & 100 volt spike pulser Measure Modes: Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS) Additional Modes Include Differential (from user-entered "nominal value"), Alarm (user-set Hi/Low Limits) and Velocity Mode LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero and units Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity USB Data output of single values for transfer to data collection devices (no internal memory) Adjustable GAIN (AGC) in 5 steps to fine tune the gauge for use on challenging materials or applications Can be used with both Single Element Delay Line and contact transducers (5 to 20MHz) CE-Certified Warranty: Gauge: 5 Years Probes: 90 Days Made in the USA
